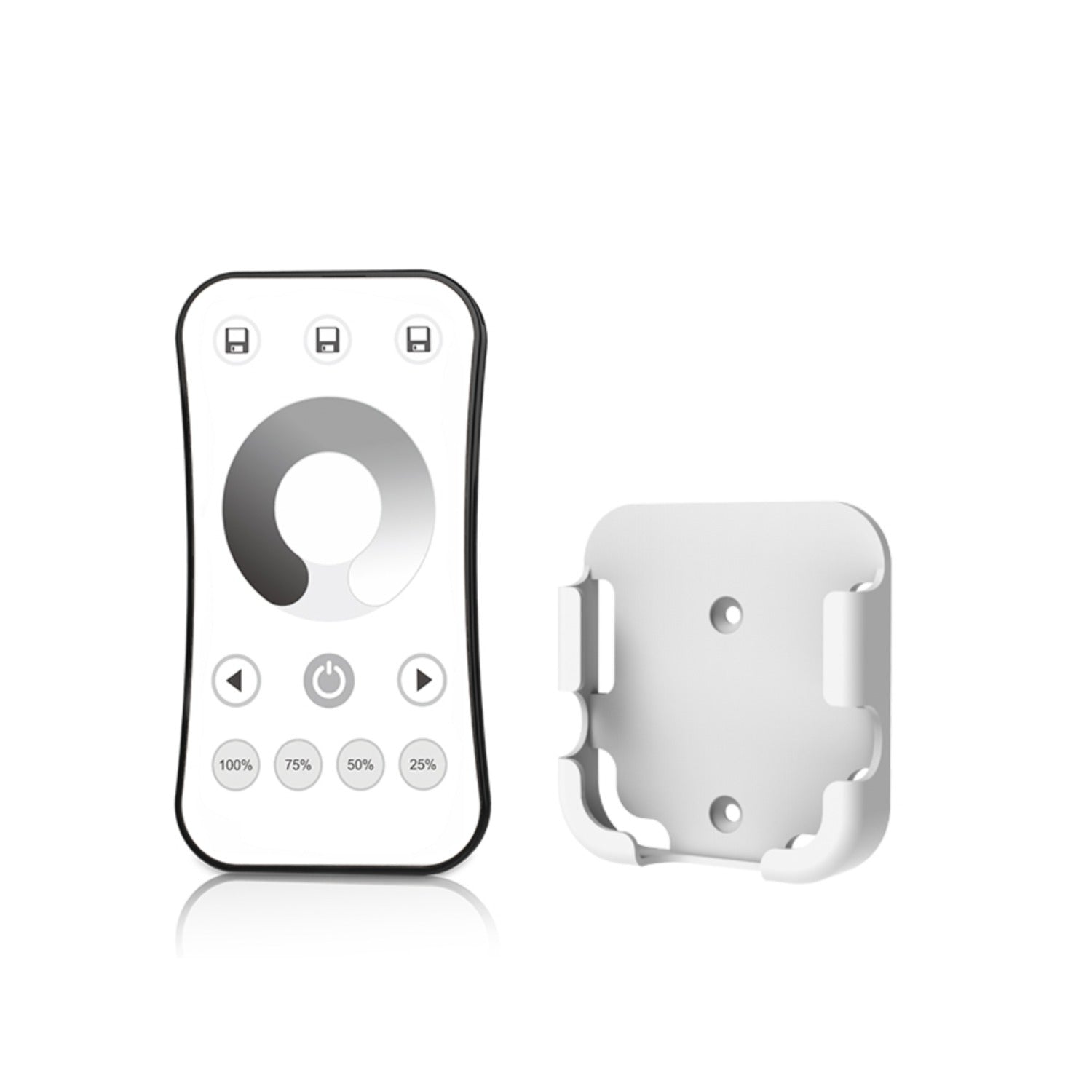

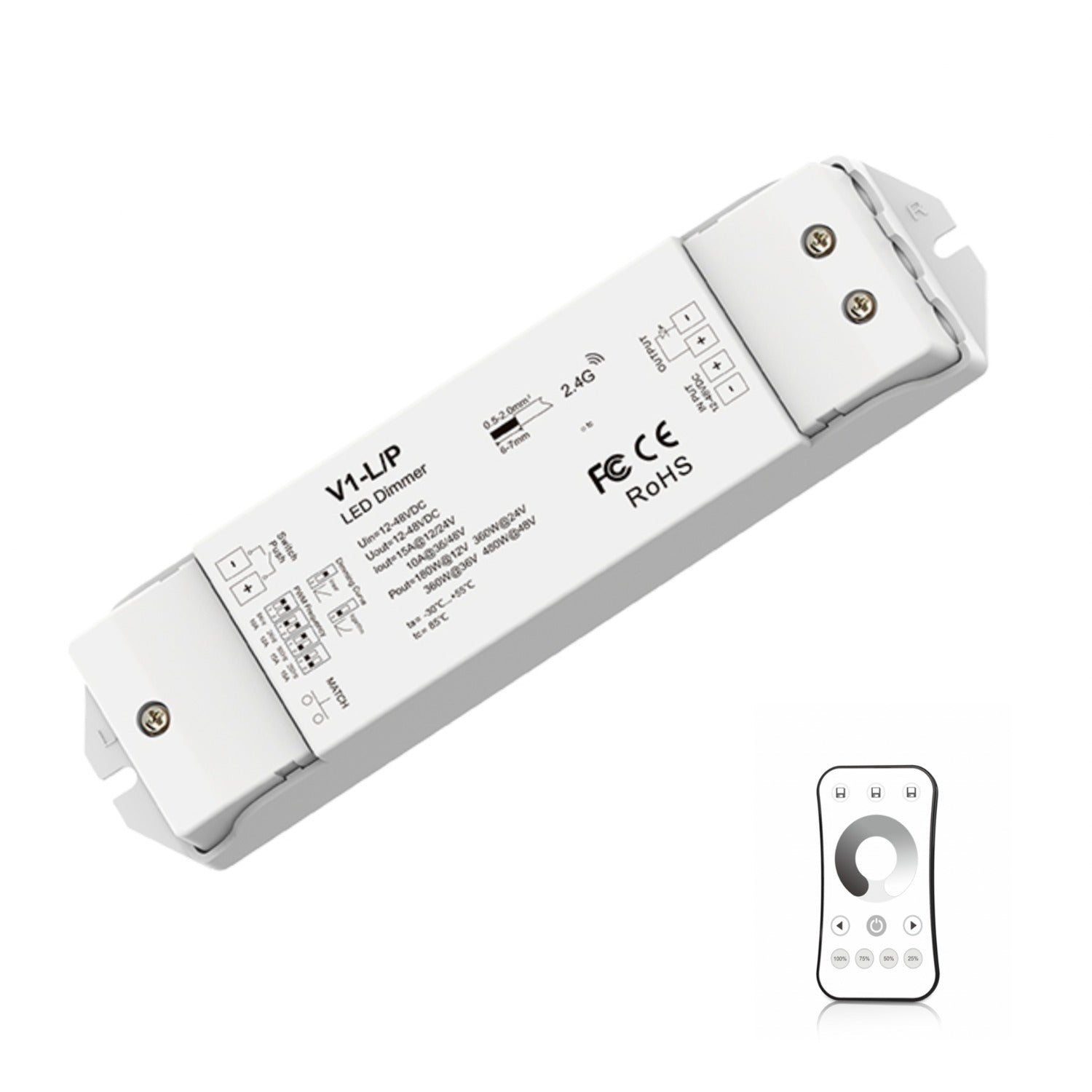

Skydance Single Colour 1CH*15A 12-48VDC CV Controller, Push-Dim V1-L/P with R6-1 Remote

• 4096 levels 0-100% dimming smoothly without any ash.

• Match with RF 2.4G single zone or multiple zone dimming remote control.
• One RF controller accept up to 10 remote control.

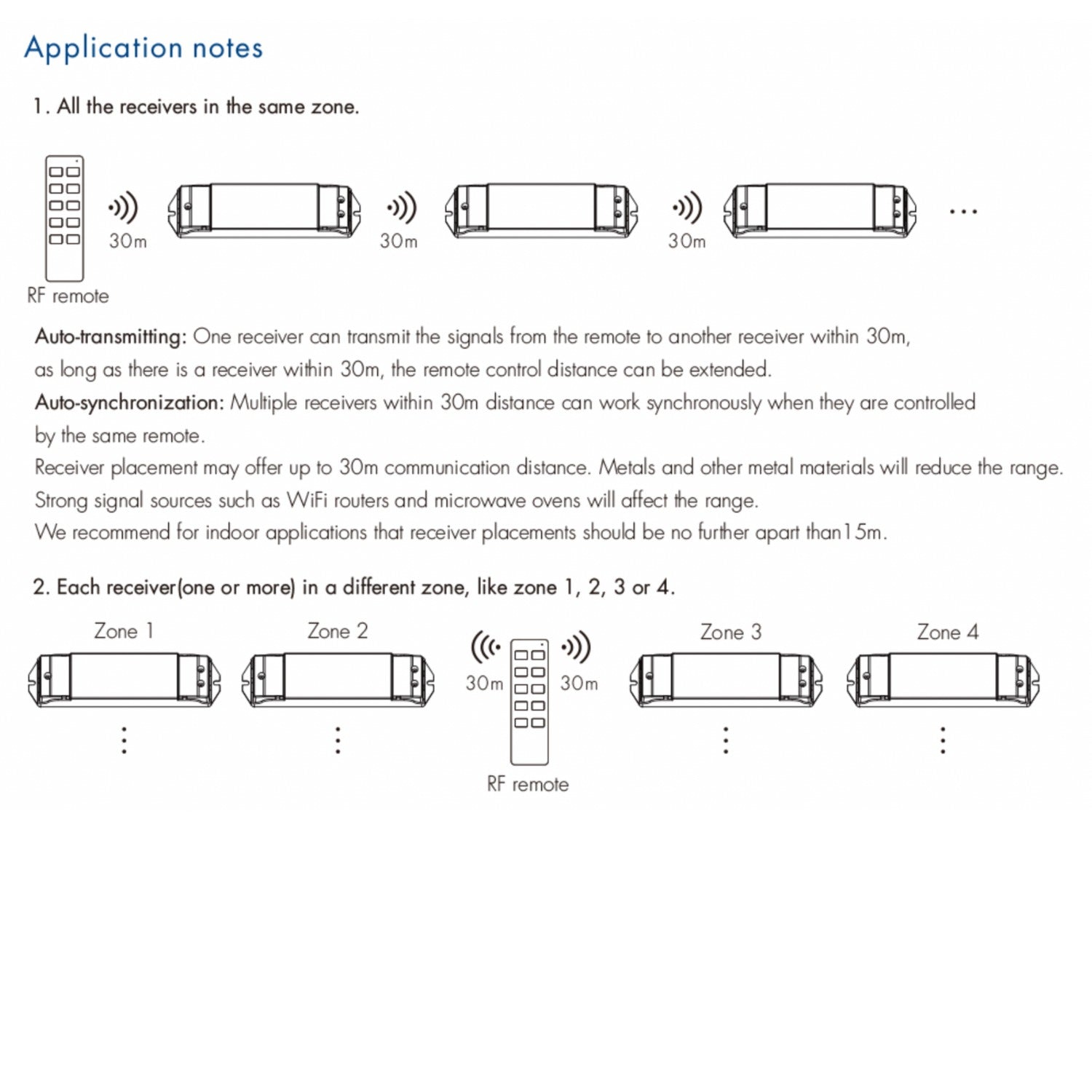

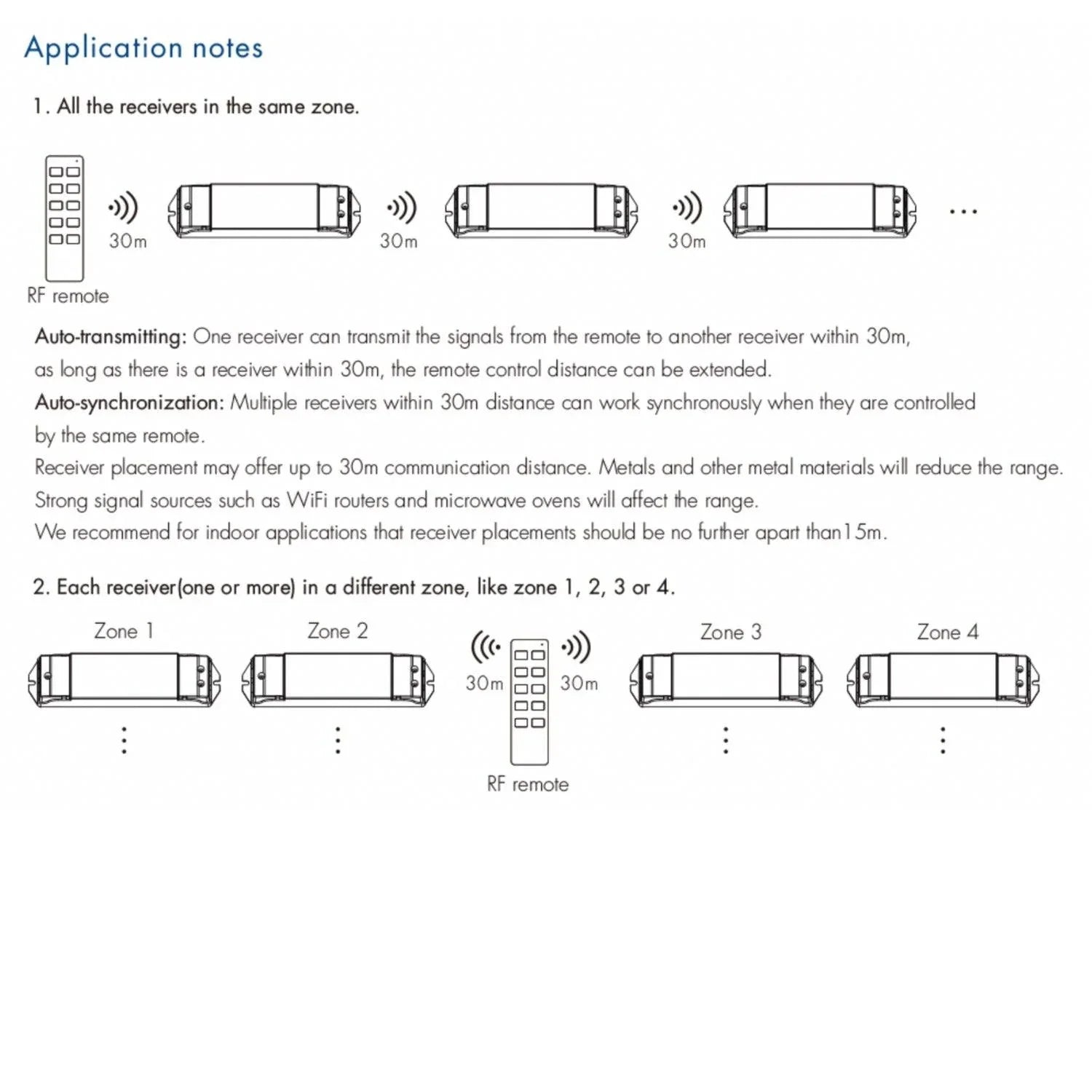

• Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
• Synchronize on multiple number of controllers.

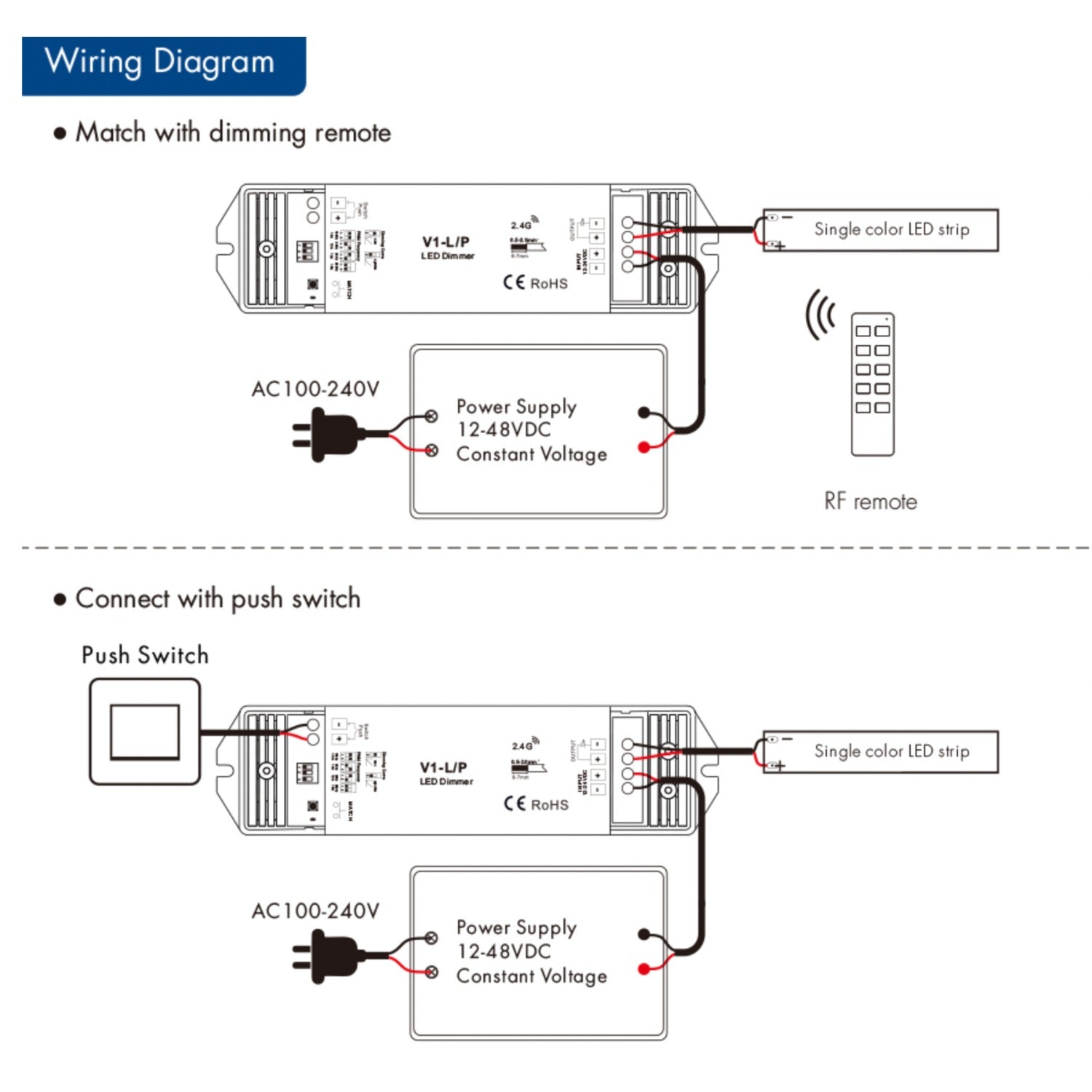

• Connect with external push switch to achieve on/off and 0-100% dimming function.
• Logarithmic or linear dimming curve selectable.
• PWM frequency 500Hz, 2kHz, 8kHz or 16kHz selectable.
• Over-heat / Over-load / Short circuit protection, recover automatically.
• Light on/off fade time 3s selectable.

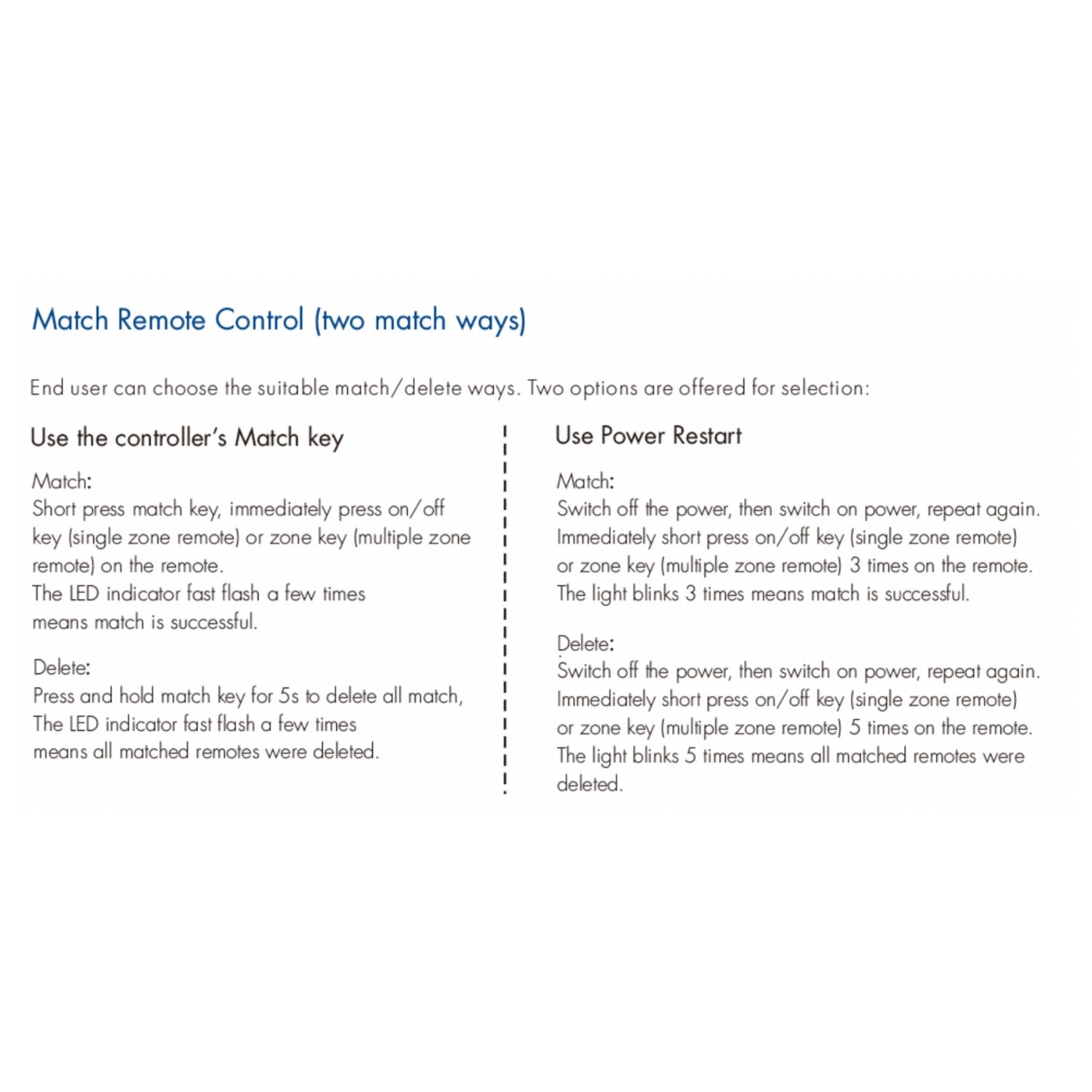

Match Remote Control (two match ways)

Use the controller’s Match key

• Match: Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote. The LED indicator fast flash a few times means match is successful.
• Delete: Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.

Use Power Restart

• Match: Switch off the power, then switch on power, repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
• Delete: Switch off the power, then switch on power, repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.

Push Dim Function:

• Push Dim Function ● Short press: Turn on or off light. ● Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction. ● Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure. ● Synchronization: If more than one controller are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installations. We recommend the number of controllers connected to a push switch does not exceed 25 pieces, The maximum length of the wires from push to controller should be no more than 20 meters.

Light On/Off Fade Time

• Long press match key 5s, then short press match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times. Light on/off fade time Long press match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.
