Description

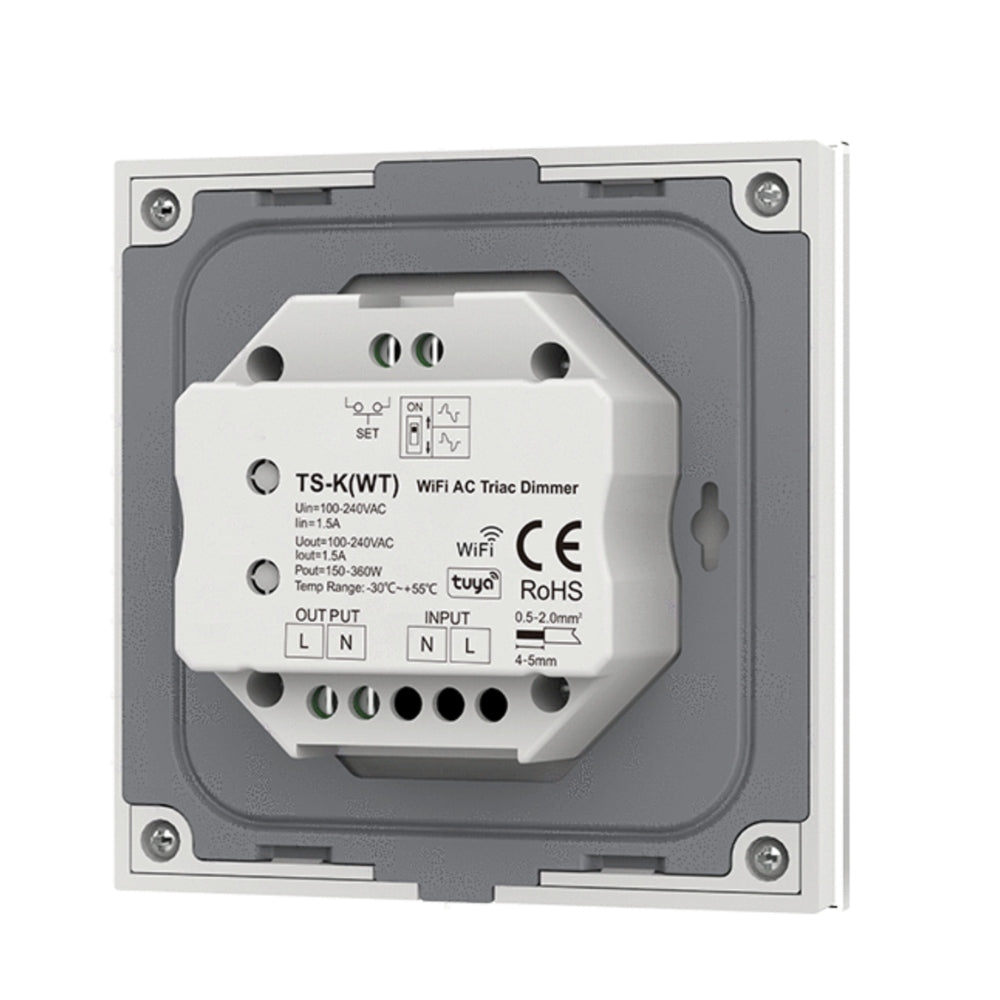

xThe TS-K(WT) Rotary Glass Panel WiFi Triac Dimmer is a 1-channel AC phase-cut dimmer designed for smooth and intelligent control of dimmable LED lighting. Featuring a modern 86-size rotary glass panel, it supports both leading edge (forward-phase) and trailing edge (reverse-phase) dimming selectable via DIP switch.

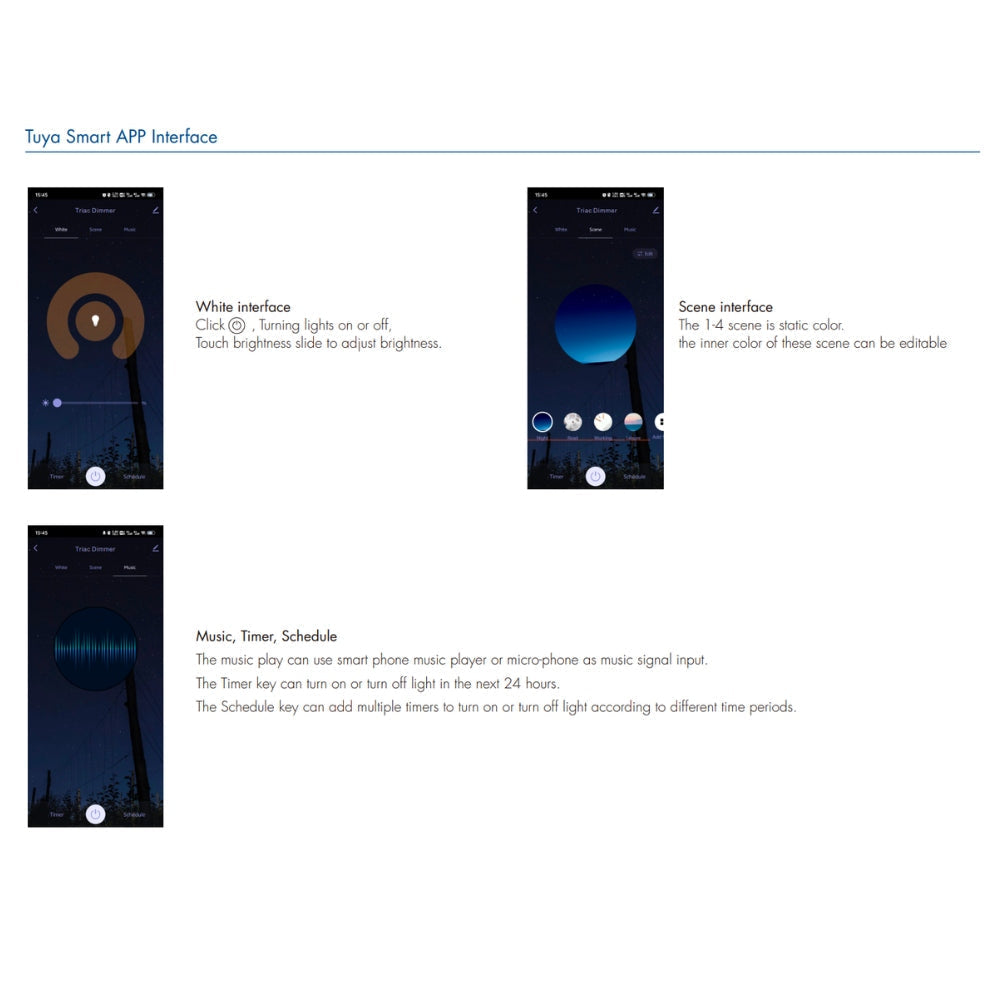

The dimmer supports Tuya Smart / Smart Life app cloud control, allowing on/off switching, brightness adjustment, delay turn on/off, timer scheduling and scene editing. It is compatible with voice control platforms including Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu.

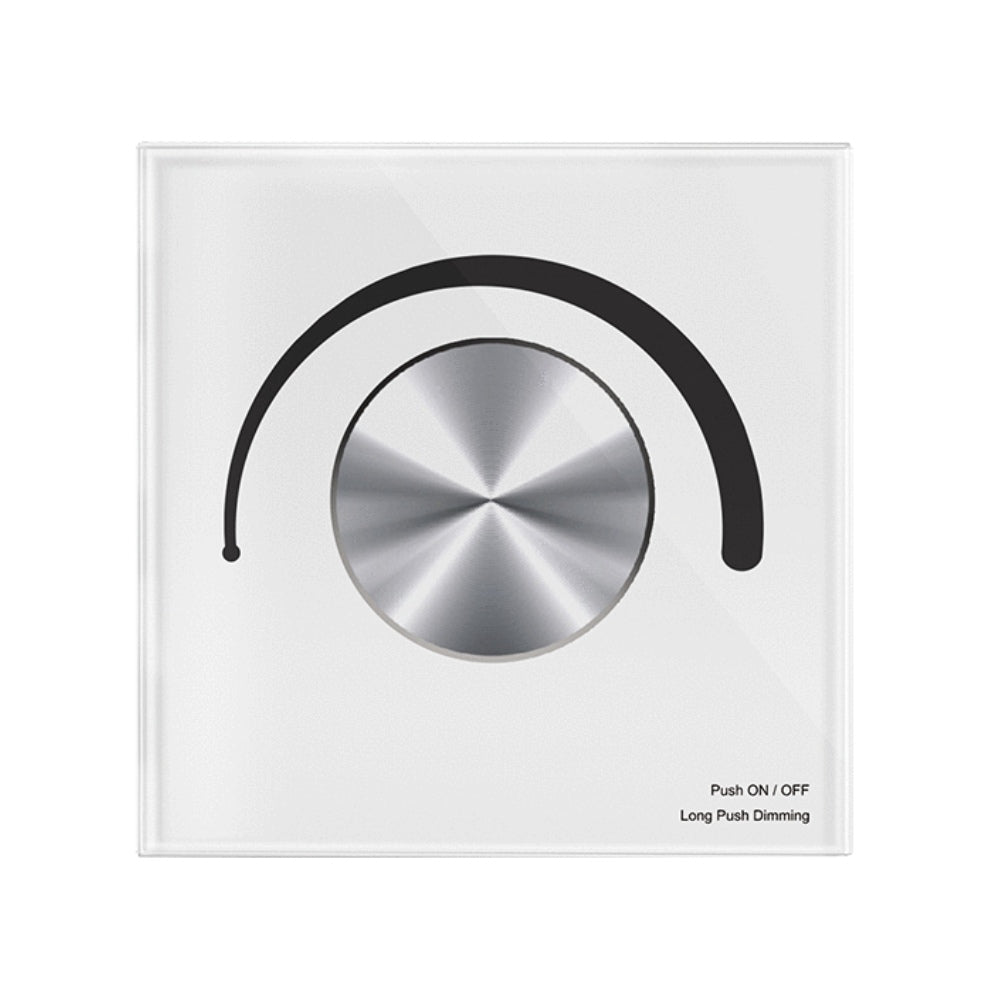

Brightness can be adjusted directly from the rotary knob with push and long push operation. It offers 256 levels of smooth 0–100% dimming without flicker. The device also includes selectable 3-second fade on/off time, minimum brightness setting, and automatic over-heat and overload protection with self-recovery.
Specification:
Model: TS-K(WT)
Type: Rotary Glass Panel WiFi Triac Dimmer
Channel: 1 Channel Output
Electrical
Input Voltage: AC100–240V
Input Current: 1.5A
Output Voltage: AC100–240V
Output Current: 1.5A
Output Power: 150–360W
Power Consumption: 1W
Dimming Range: 0–100%
Dimming Levels: 256 levels
Dimming Method: Leading edge or Trailing edge phase-cut (selectable)
Operating Conditions
Operating Temperature (Ta): -30°C to +55°C
Case Temperature (Tc Max): +85°C
IP Rating: IP20
Control
Control Method: WiFi + Rotary Knob
WiFi Band: 2.4GHz
RF Control Distance: 15m (barrier-free space)
App Support: Tuya Smart / Smart Life
Voice Control: Alexa, Google Assistant, Tmall Genie, Xiaodu
Mechanical

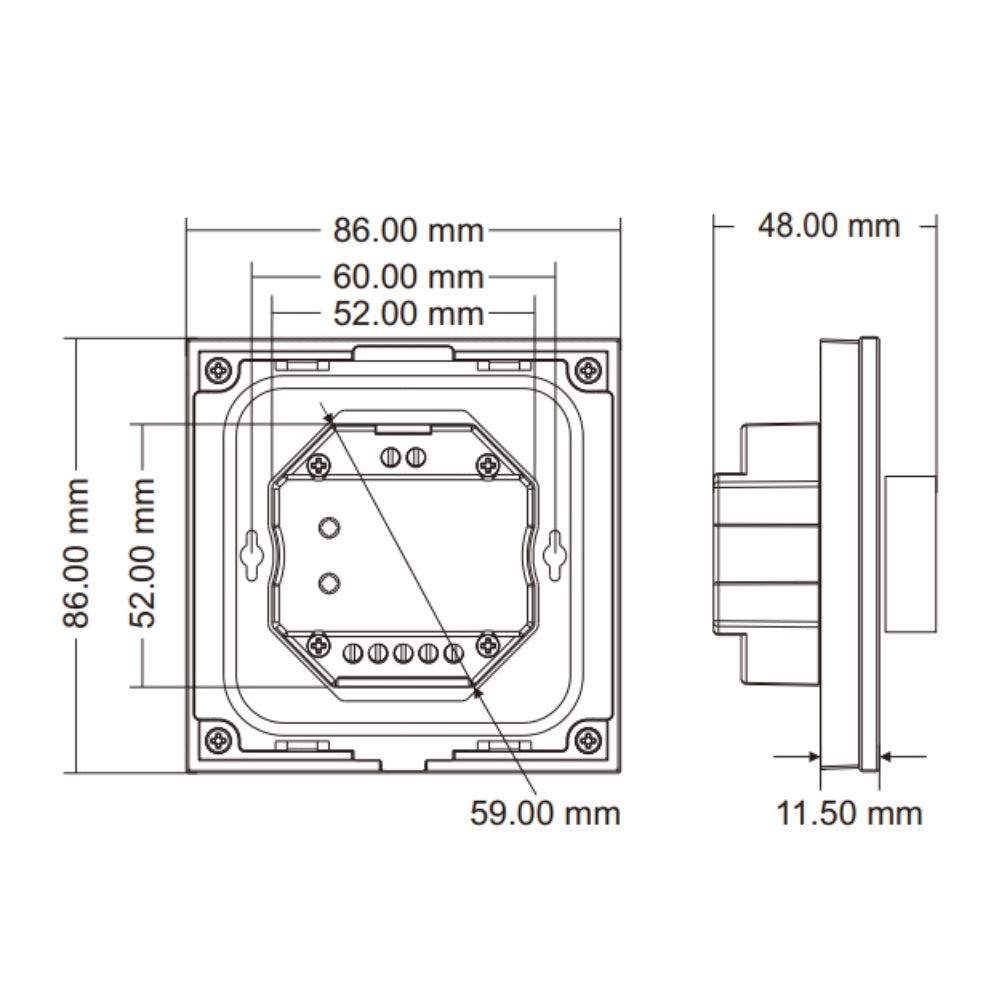

Panel Size: 86 × 86 mm
Device Size: 112 × 112 × 60 mm
Gross Weight: 0.234kg

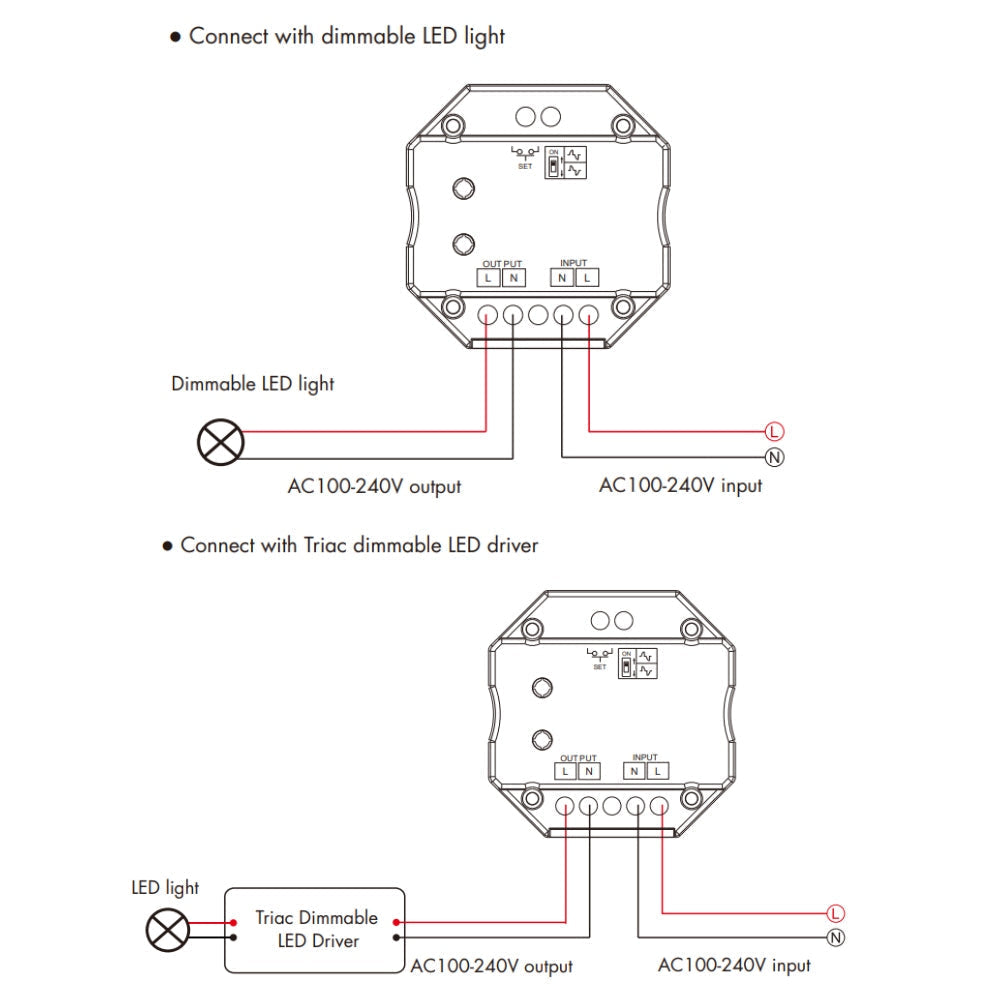

Load Compatibility
Dimmable LED Lamps:
• 200W @ 220V
• 100W @ 110V
Triac Dimmable LED Drivers:
• 200W @ 220V
• 100W @ 110V
Incandescent & HV Halogen Lamps:
• 400W @ 220V
• 200W @ 110V
Protection & Warranty
Protection: Over-heat / Over-load with automatic recovery
Warranty: 5 Years
Certification & Compliance
CE
RoHS
EN 60669-1 / -2
ETSI EN 300 440
ETSI EN 300 328
EN IEC 55015 / EN IEC 61547
ETSI EN 301 489-1 / -3 / -17
