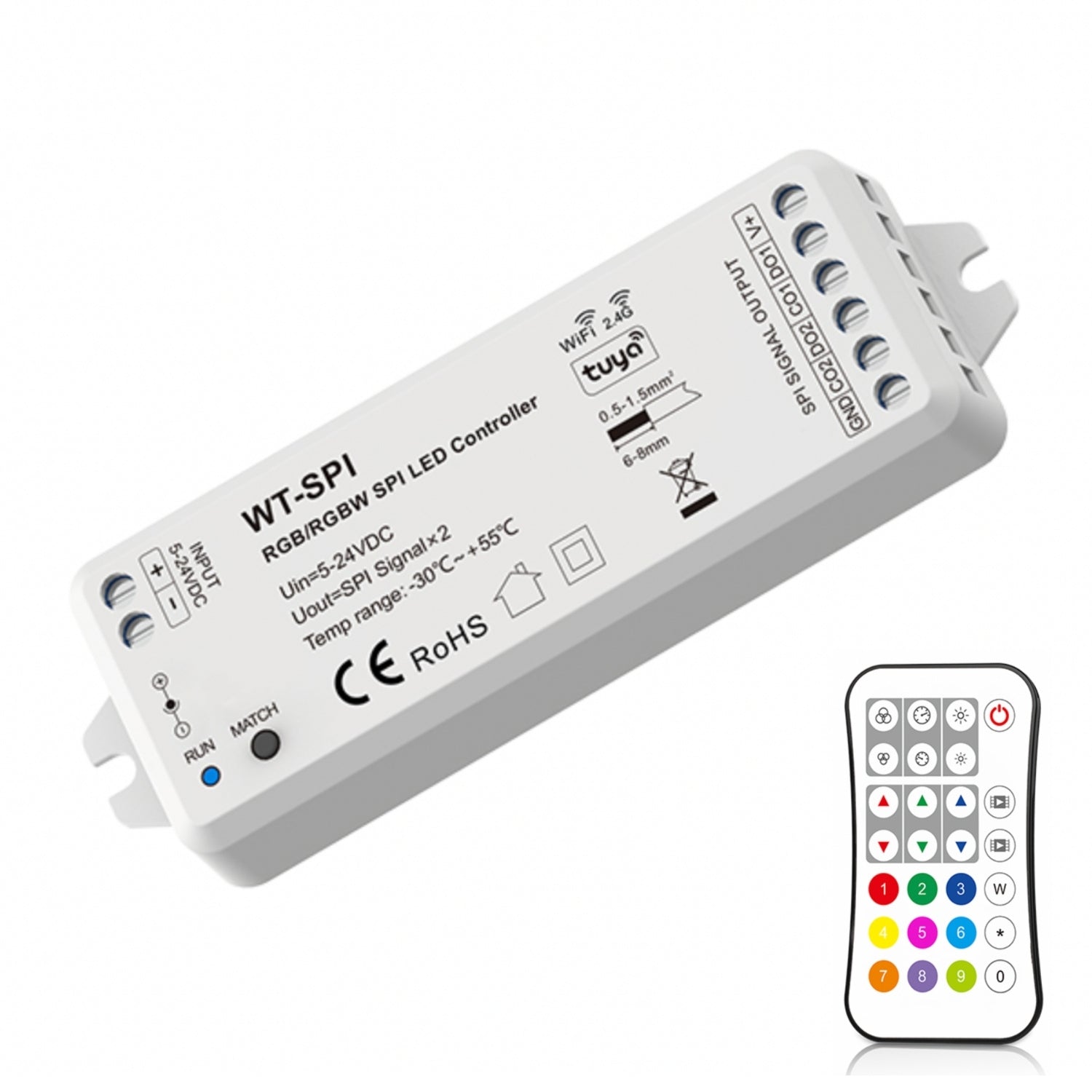

Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote

SKU: SKYD-WT-SPI-R9
£69.75
£69.75
Subtotal: £69.75
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED

Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote

£69.75
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED
Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote - ATOM LED

Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 with Remote

£69.75
Description
Description
x

Download Manual



Tuya APP cloud control/Compatible with 45 kinds IC/Customized dynamic scenario mode/Multiple music rhythms/Wireless remote control

Features

  • ●  Multi-pixel RGB/RGBW LED strip controller with SPI signal output, Tuya APP cloud control.
  • ●  Compatible with 45 kinds of RGB or RGBW LED strips, chip type and R/G/B order canbe set via RF remote control.
    Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603.
  • ●  Painted segment color mixing: full colour, color pencil segment painting, eraser segment light off.

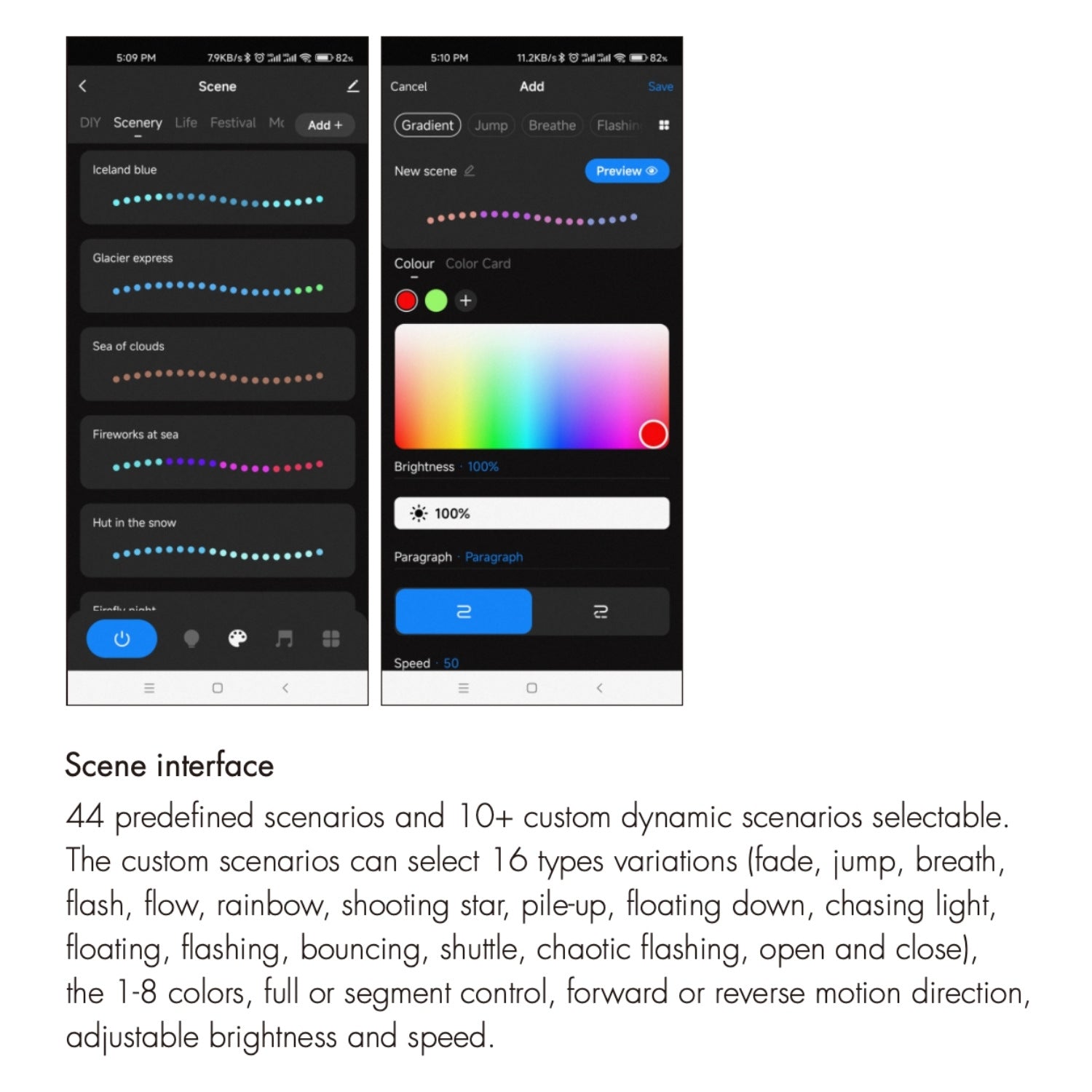

  • ●  Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.

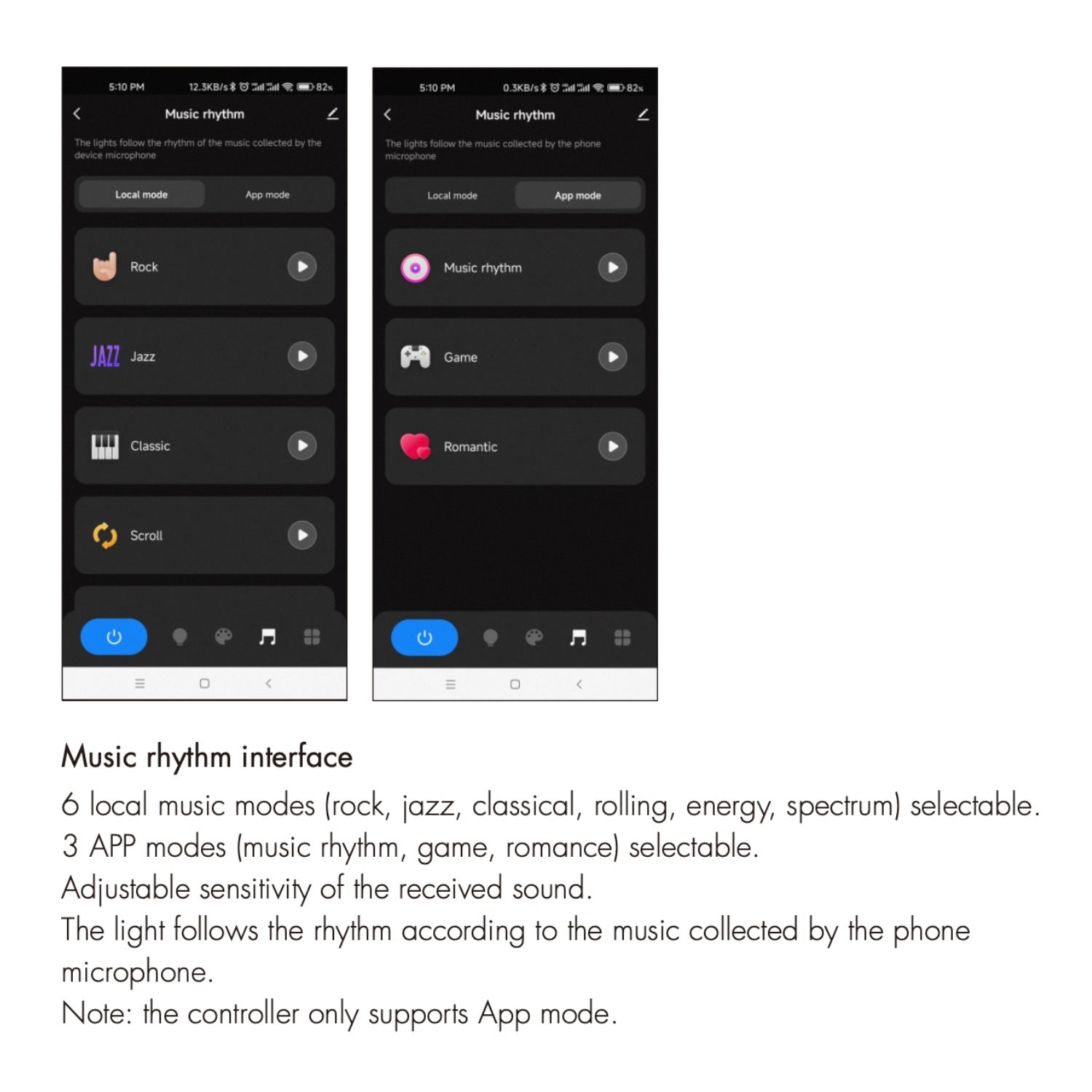

  • ●  Multiple music rhythms: 6 local music rhythms, 3 APP music rhythms.
  • ●  Match with RF 2.4G RGB remote control.

Technical Parameters

Input and Output

Input voltage – 5-24VDC

Input signal – Tuya APP + RF 2.4GHz

Output signal – SPI(TTL) x 2

Scenario Mode – 44 default and 10+ customizations

Pixel Dots – MAX.1000

Operation temperature – Ta: -30OC ~ +55OC

Case temperature (Max.) – T c:+65 C

IP rating – IP20

Size – L120 x W43 x H35mm

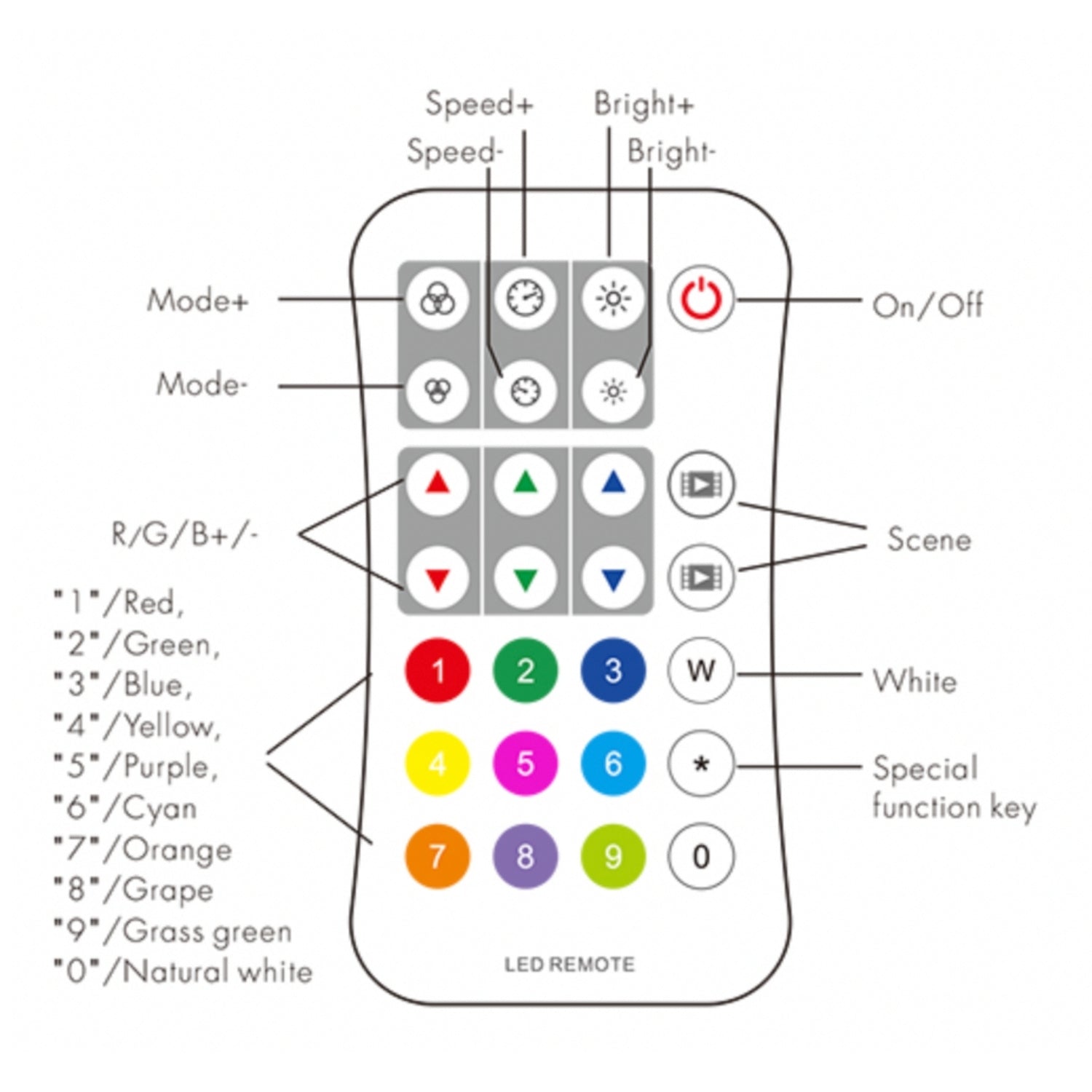

Match R9 remote control

Match: Short press on the match key, and immediately press on/off key of the remote. The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key for 10s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.

Set the length, chip type and RGB order of the SPI LED strip using R9 remote control

● Set the LED strip length[number of pixels(10~1000)]: * + 3 digits + *
Example:

*032*, set the number of pixels 32. *600*, set the number of pixels 600. *1000*, set the number of pixels 1000.

●Set the LED strip chip type: * +2 digits + *
*11*:TM1803
*12*:TM1809, TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813,

UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815 *13*:TM1829

*14*:TLS3001, TLS3002
*15*:GW6205
*16*:MBI6120
*17*:TM1814B(RGBW)
*18*:SK6812(RGBW), WS2813(RGBW), WS2814(RGBW) *19*:UCS8904B(RGBW)

*21*:LPD6803, LPD1101, D705, UCS6909, UCS6912 *22*:LPD8803, LPD8806
*23*:WS2801, WS2803
*24*:P9813

*25*:SK9822 *31*:TM1914A *32*:GS8206,GS8208 *33*: UCS2904

*34*: SM16804
*35*: SM16825
*36*: SM16714(RGBW) *37*: UCS5603
*38*: UCS2603

● Set LED strip RGB order:* + 1 digit + *
*1*:RGB, *2*:RBG, *3*:GRB, *4*:GBR, *5*:BRG, *6*:BGR.



Technical Parameters
  • Input and Output
  • Input voltage - 5-24VDC
  • Input signal - Tuya APP + RF 2.4GHz
  • Output signal - SPI(TTL) x 2
  • Scenario Mode - 44 default and 10+ customizations
  • Pixel Dots - MAX.1000
  • Operation temperature - Ta: -30OC ~ +55OC
  • Case temperature (Max.) - T c:+65 C
  • IP rating - IP20
  • Size - L120 x W43 x H35mm
