Description
xSPIW5 5 in 1 SPI+DMX WIFI+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it’s special controller for SPI LED strip light. The controller support WIFI+2.4G wireless transmitting technology Setting different features like adjust different modes, color, brightness and change dynamic illumination via TUYA SMART APP or C9, B9 remote.
- 5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT
- Color, pixel points, speed, static mode and dynamic mode dimmable
- Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.
- 8 kinds of music mode work with built-in microphone or smart phone microphone
- Freely switching dynamic and music mode

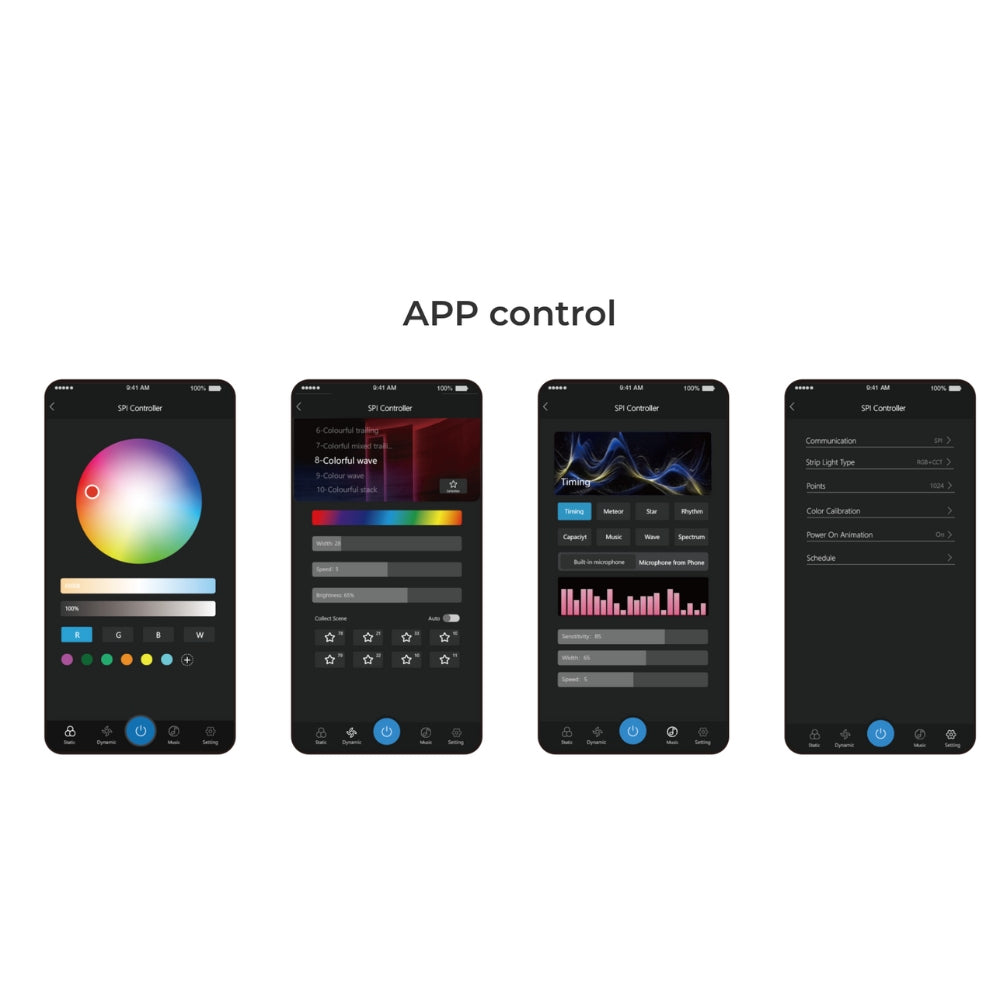

- Setting boot animation via TUYA SMART APP
- Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps
- Have DND mode, usually used for power failure area to save power
Compatible:
TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
Specification:

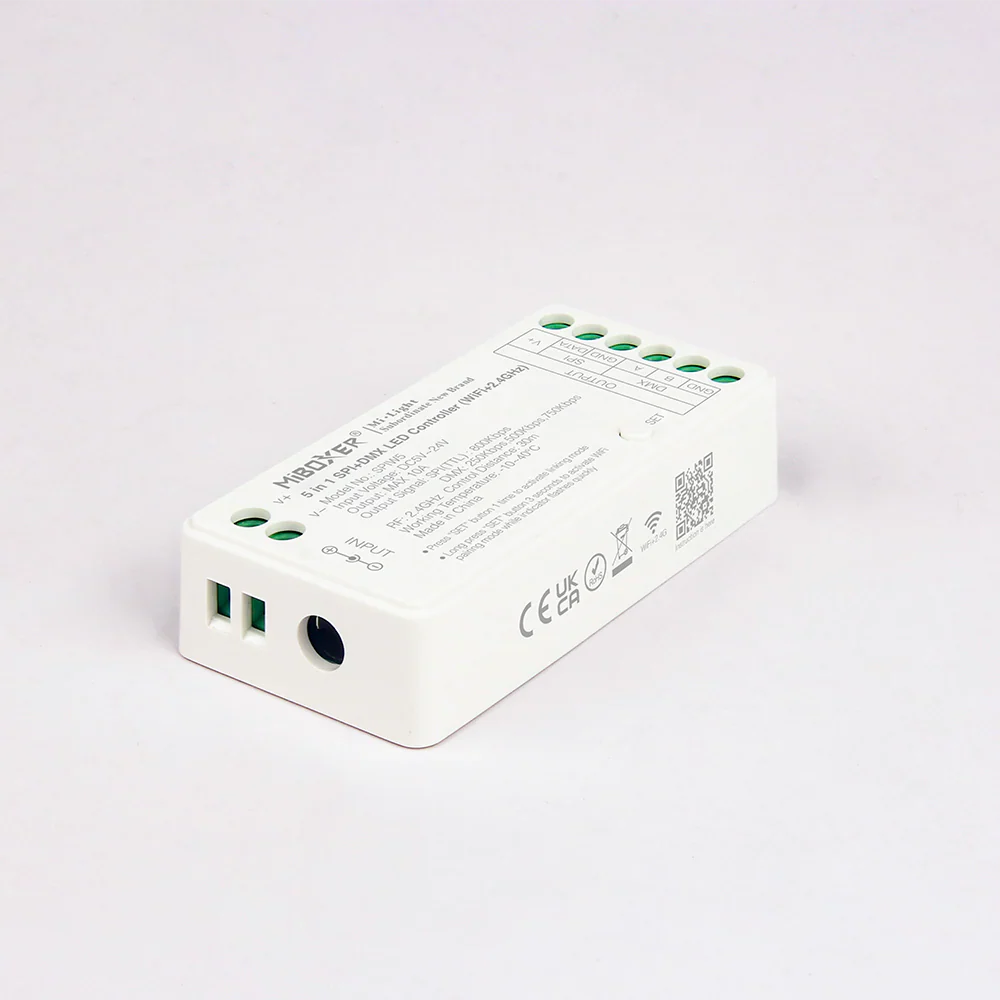

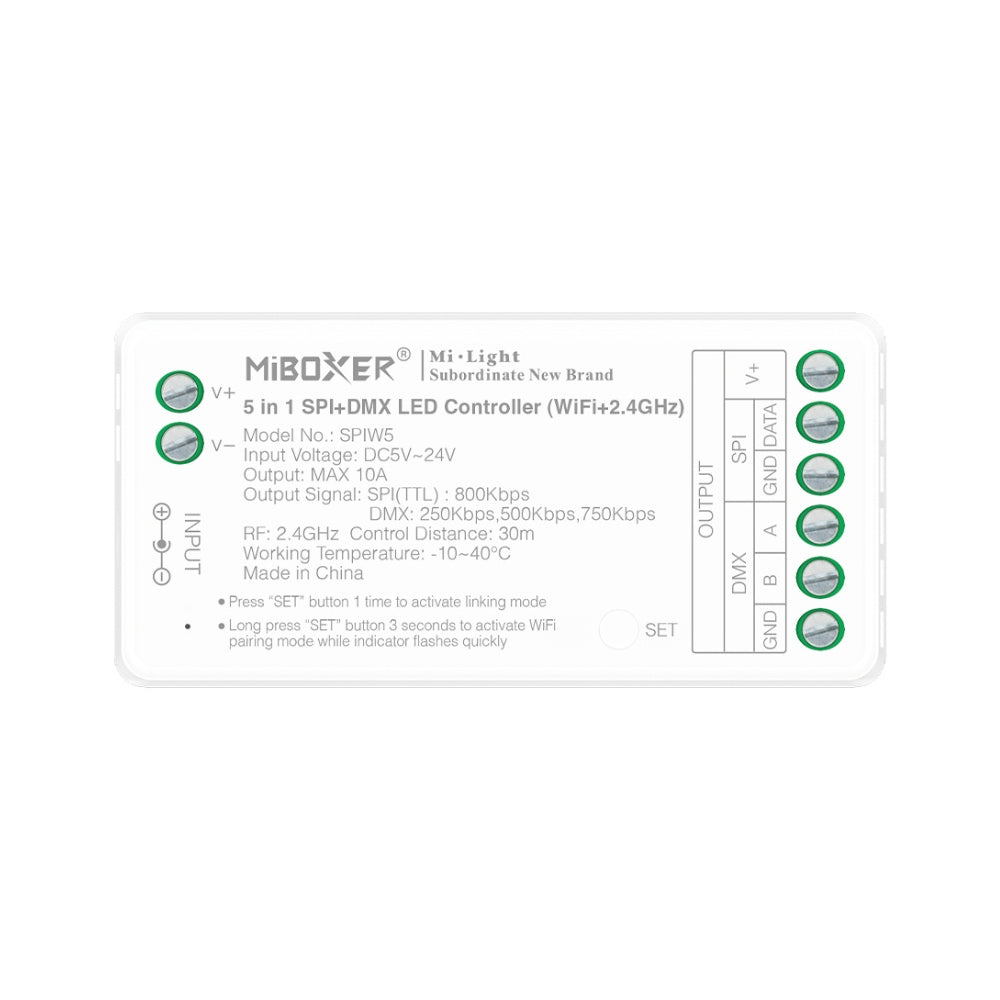

Product - 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)
Model - SPIW5
Input Voltage - DC5V~24V
Output Current - Max 10A
Output Power - 50-240W
Output Type - Constant Voltage

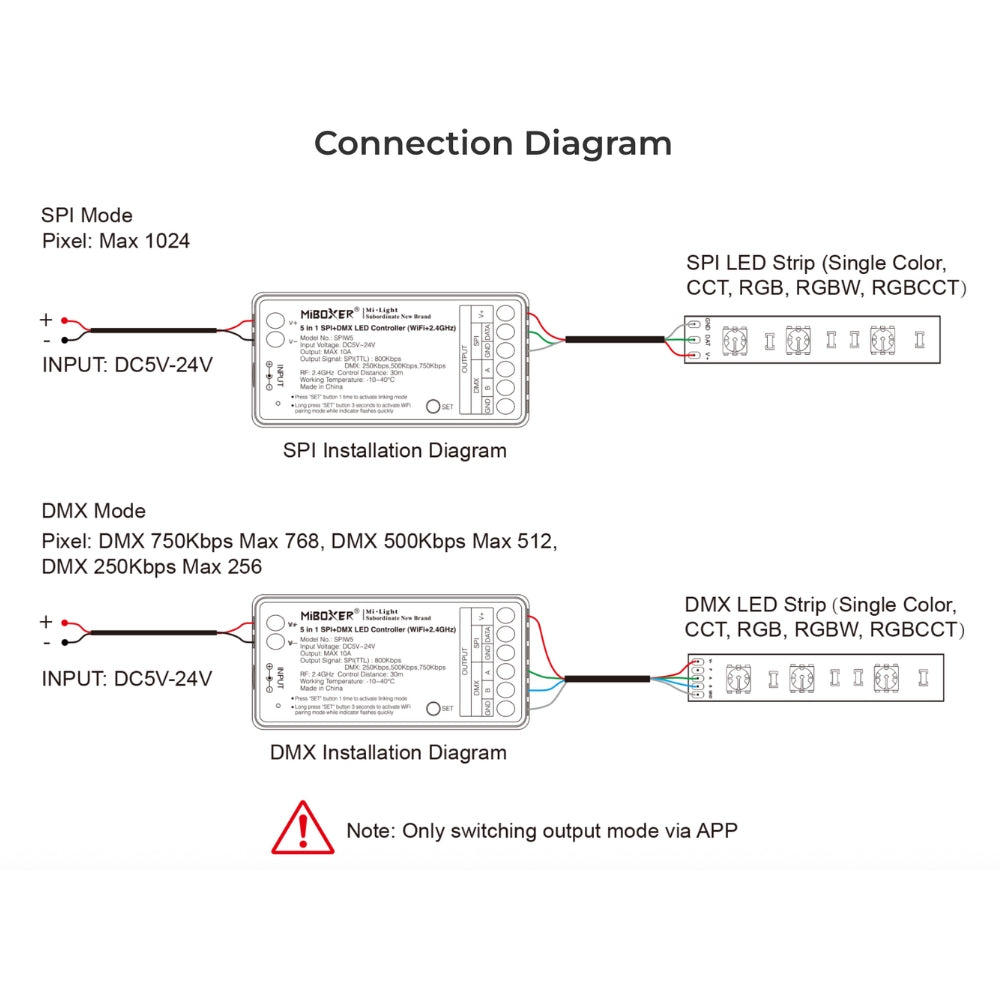

Output Signal - SPI(TTL) 800Kbps (Max 1024 Pixel)
DMX: 250Kbps(Max 256 Pixel)
DMX: 500Kbps(Max 512 Pixel)
DMX: 750Kbps(Max 768 Pixel)
Protocol - WiFi + 2.4GHz RF
Control Distance - 30m
Warranty - CE, EMC, LVD, RED
Certification - CE, EMC, LVD, RED
Dimming Range - 0.1%-100%
IP Rating - IP20
Working Temperature - -10~40°C

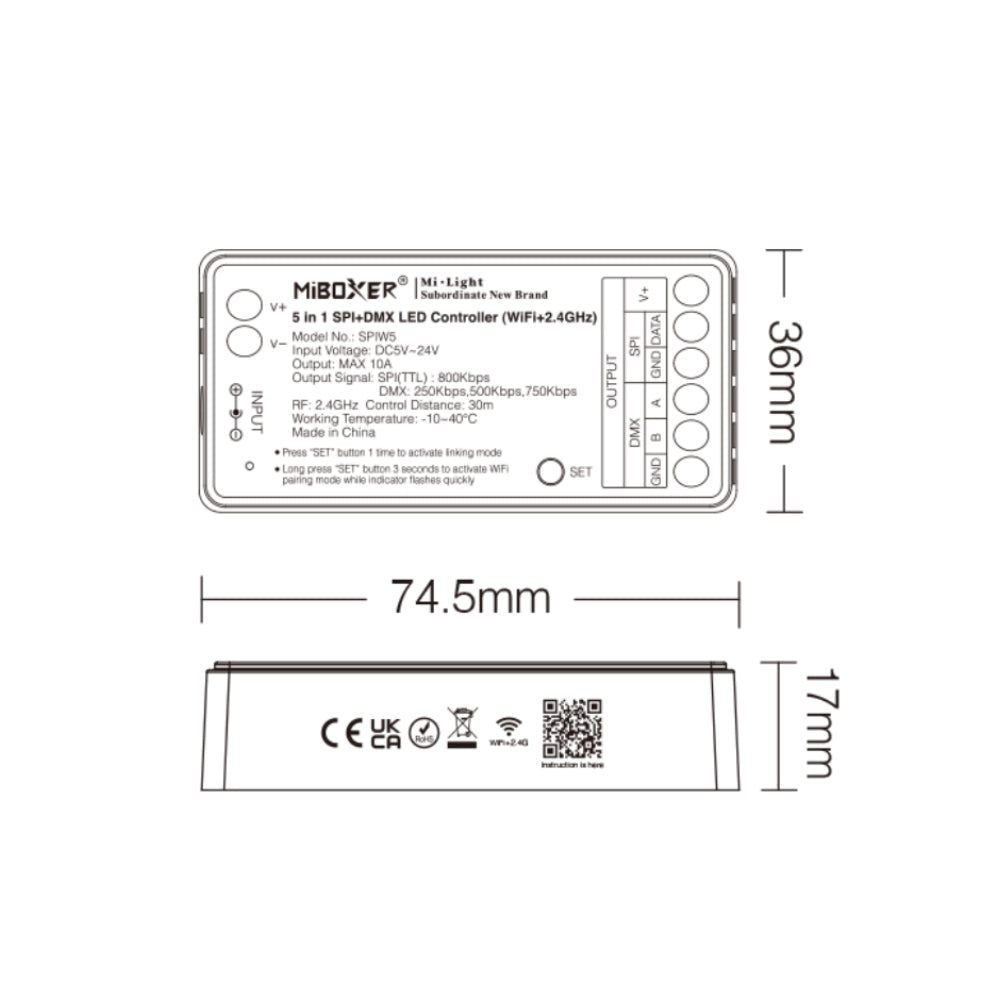

Size - 74.5mm x 36mm x 17mm
