GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

SKU: GL-C-017WL-D
£37.85
£37.85
Subtotal: £37.85
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

£37.85
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D
GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

£37.85
Description
Description
x

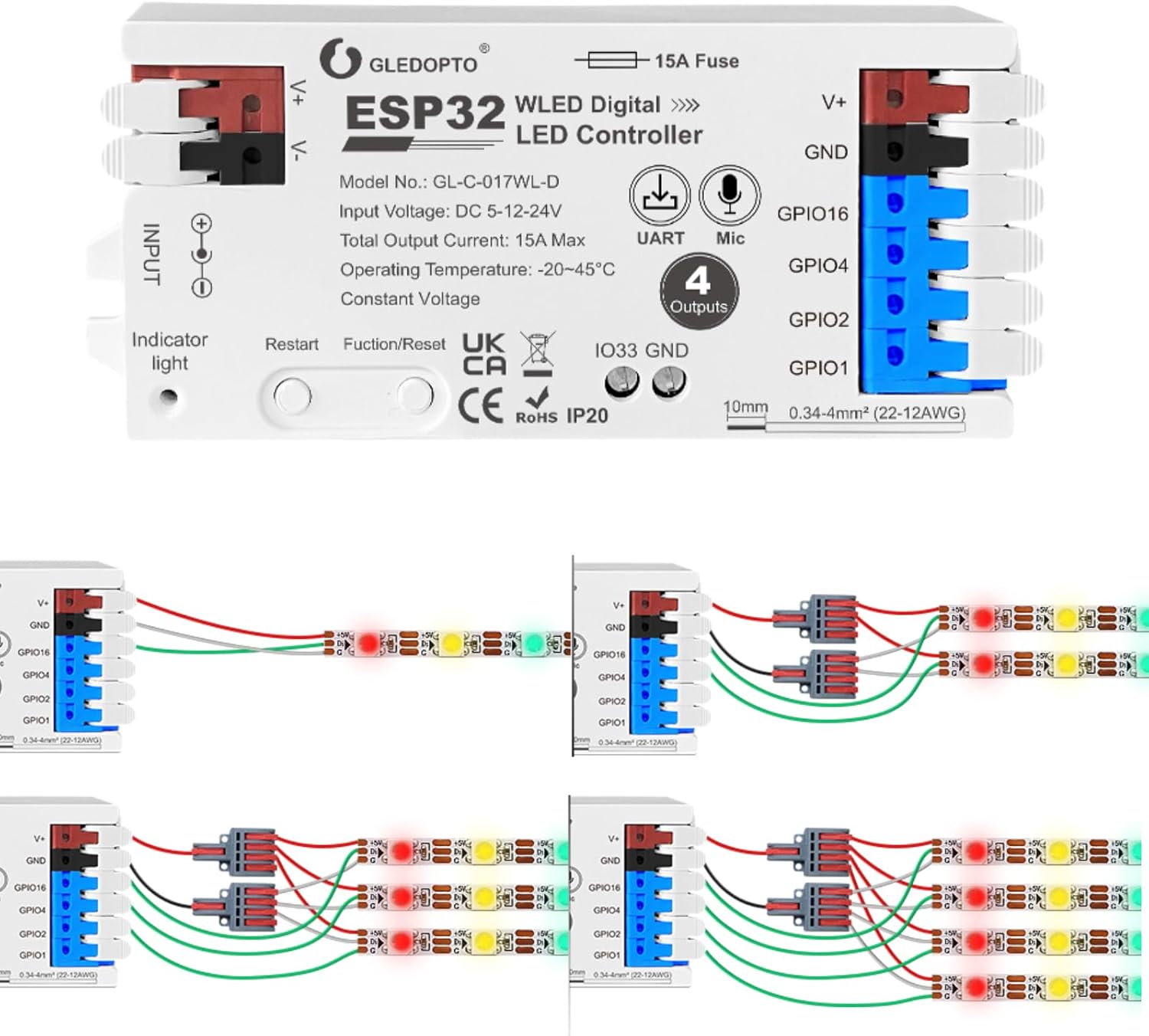

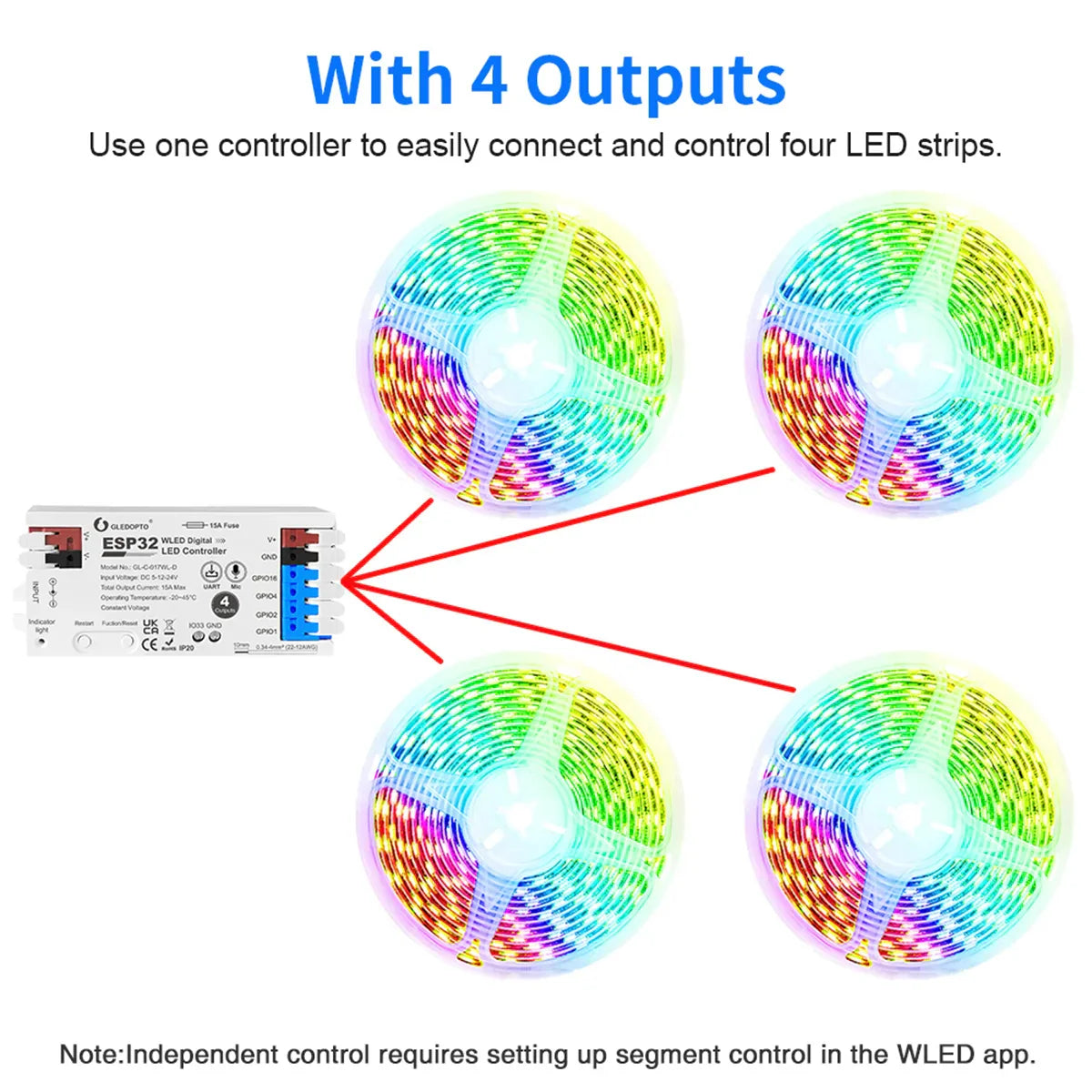

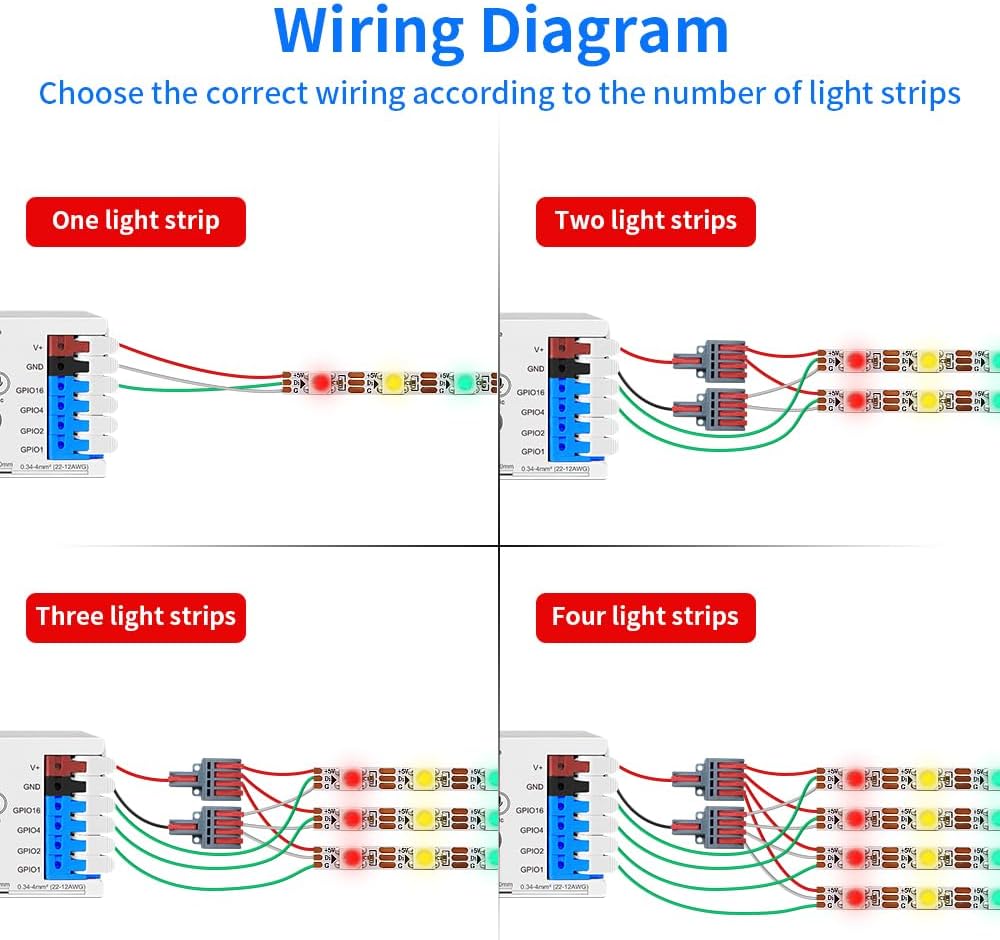

  • This controller offers four-channel independent control, allowing you to drive and individually manage up to four digital LED strips such as WS2811, WS2812, SK6812, and WS2815 for multi-zone lighting effects. Segmented control can be configured directly within the WLED app.

    A built-in microphone enables music-synchronised lighting, combined with over 100 dynamic effects including rainbow, fire, and meteor patterns, all accessible through the WLED app.

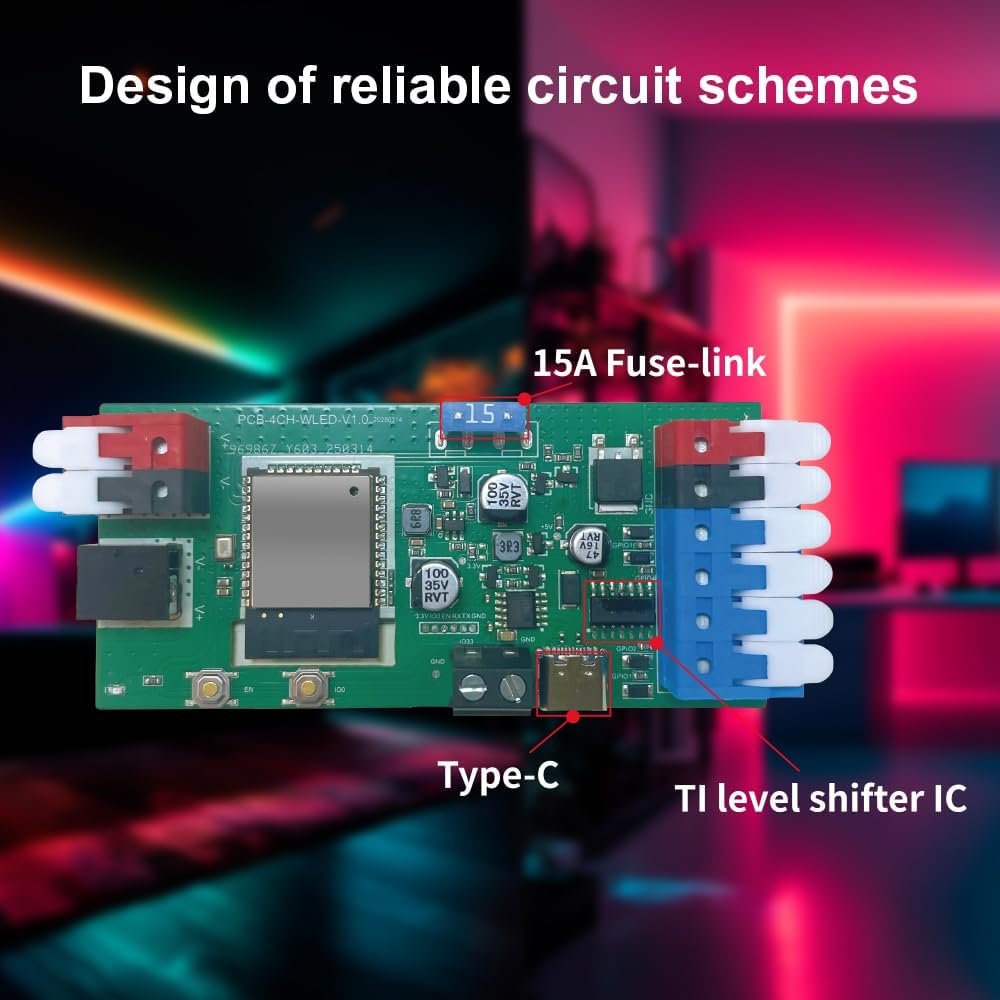

    Safety and efficiency are built in, with a 15 A fuse for overcurrent protection, an automatic power-off relay, and a level shifter IC to ensure stable signal transmission.

    Firmware updates can be completed wirelessly via the WLED app or through a wired UART connection, with wide compatibility across popular addressable LED protocols.

    The compact, user-friendly design features clear wiring terminals and ESP32-powered performance, making it suitable for home, commercial, and professional lighting projects.

    Specification:

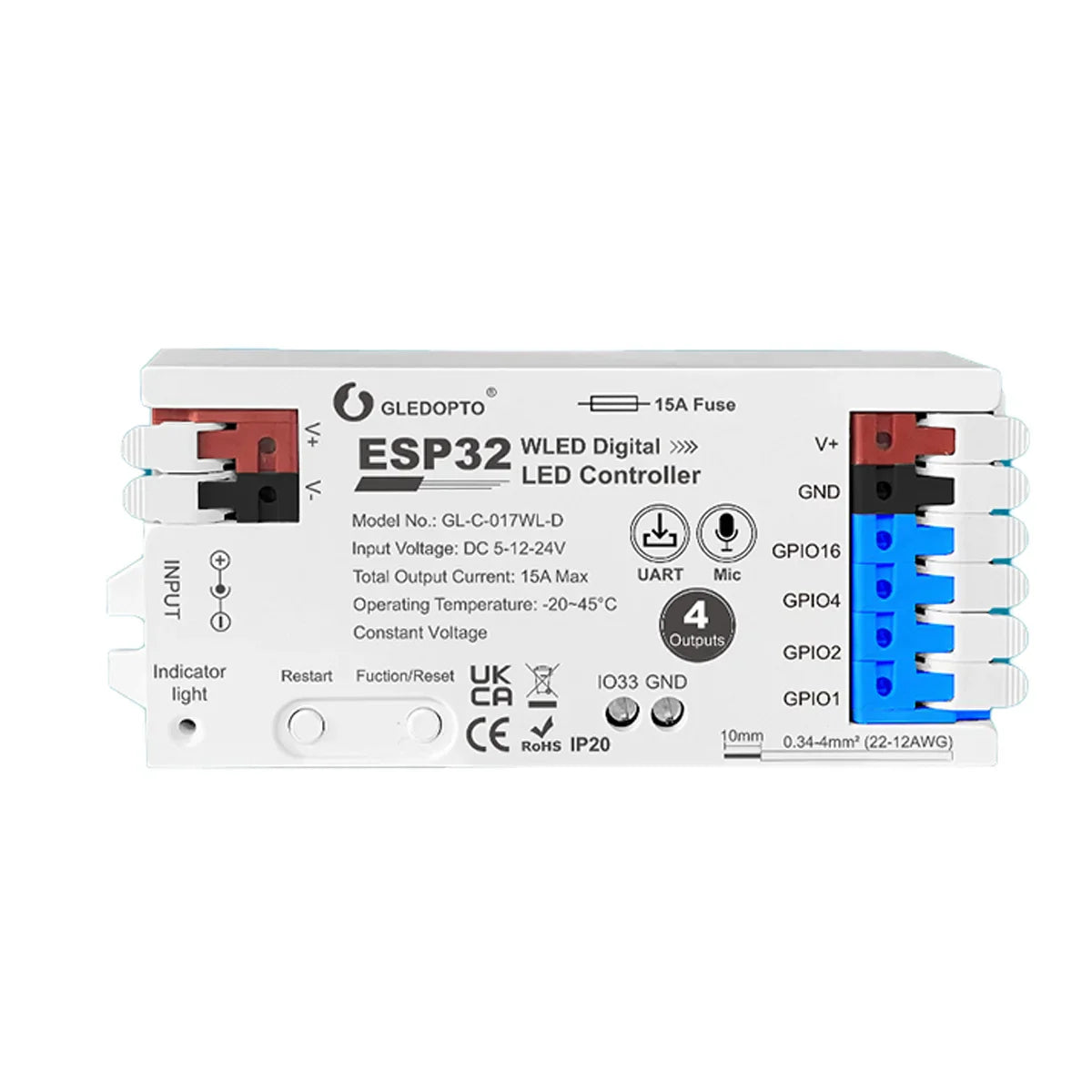

    Controller type: ESP32-based WLED controller
    Channels: 4 independent output channels
    Supported LED types: WS2811, WS2812 / WS2812B, SK6812, WS2815
    Input voltage: DC 5–12–24 V
    Maximum output current: 15 A total
    Control method: WiFi via WLED app and wired UART
    Music sync: Built-in microphone for audio-reactive effects
    Lighting effects: 100+ dynamic effects via WLED
    Firmware updates: OTA (wireless) and UART
    Signal stability: Integrated level shifter IC
    Protection: Built-in 15 A fuse and automatic power-off relay
    Application: Multi-zone home, commercial, and professional lighting installations
