Cool White Neon Flex 6000K 48V 10x10mm Top Bend IP67 Waterproof 25m

10x10mm Vertical Bend Neon Flex — also sold as Top Bend neon flex — bends in the vertical plane only: up and over arches, along stair nosings, and up the rising strokes of signage. 48V DC, 144 LEDs per metre, IP67, cut every 8.33cm (83.3mm). It does not bend side to side.

Vertical bend (top bend) neon flex bends on its narrow edge, so the run climbs and falls with the surface instead of curving left or right. On 48V it carries up to 25m continuous from a single feed (one side power), or up to 50m continuous with power injected at both ends (dual feed) — close to double the reach of the 24V 10x10mm dual-bend equivalent. Built from anti-yellowing UV-stable silicone, it holds up to UK weather year-round and a 120° beam delivers smooth, shadow-free light with no hot spots.

What is vertical bend (top bend) neon flex?

Vertical bend neon flex, also called top bend neon flex, is LED neon flex that flexes on its short axis — it curves up and down rather than side to side. It suits arches, stair edges, vertical signage strokes, and any run that follows a rising or falling line. For left-right curves you need side bend or dual bend instead.

Where does top bend neon flex fit best?

• Arches and curved-top features: vertical bend flex follows the rise and fall of arched openings, domed coving, and barrel detail that side-bend flex cannot track.
• Stair nosings and stepped runs: the top bend hugs each riser and tread edge on staircases and tiered seating.
• Vertical signage strokes: the climbing strokes of channel letters and bespoke neon signage where the flex must turn up the face.
• Long fascia and soffit lines: 48V carries the vertical bend run up to 25m on a single feed, or up to 50m with dual feed, for facade, eaves, and ceiling-perimeter detail.

Install notes

• Power feed: up to 25m continuous run from one side (single feed) on 48V, or up to 50m continuous with power injected at both ends (dual feed). Split into separate runs only where the layout exceeds 50m.
• Driver sizing: total wattage × 1.2 safety margin. A 25m vertical bend run at 11W/m draws 275W, so use a 48V driver rated at least 330W; a 50m dual-feed run draws 550W.

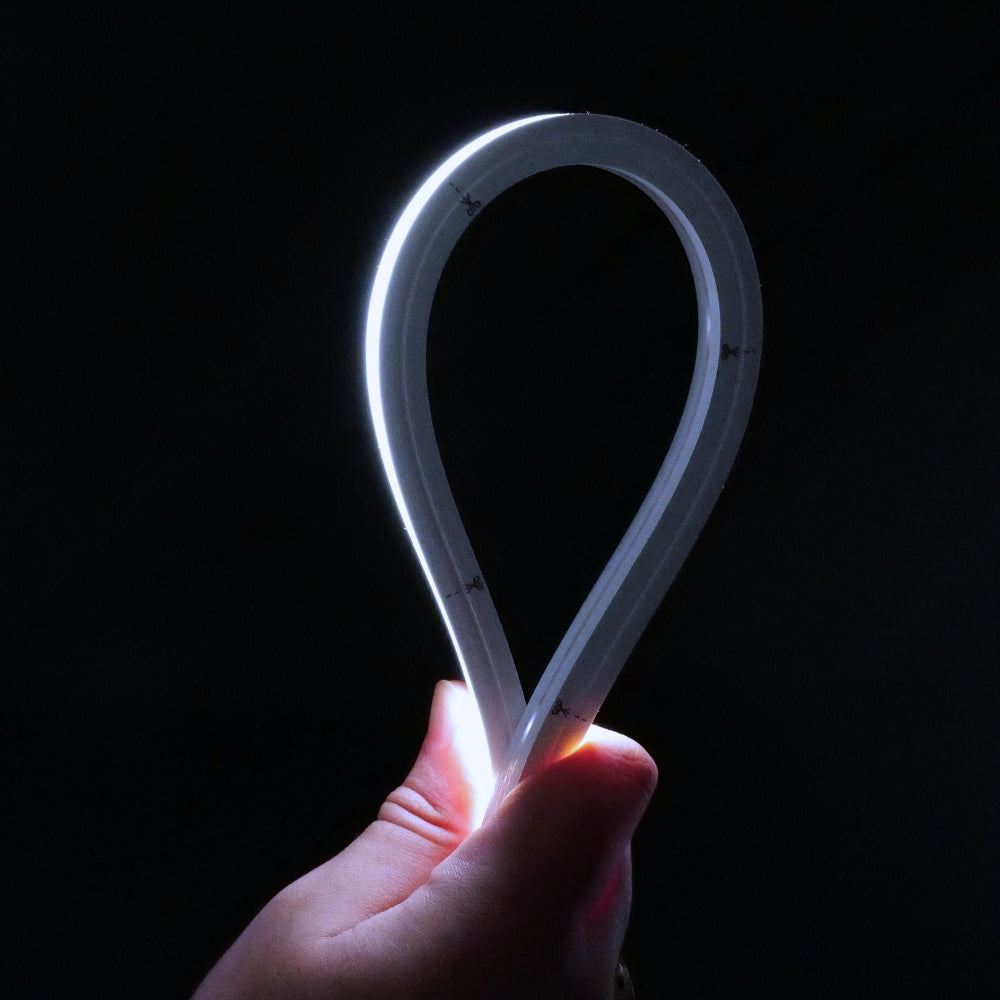

• Bend radius: 3cm (30mm) minimum in the vertical plane. Tighter curves risk cracking the LEDs inside the silicone body.
• Cut points: cut only at the marked 8.33cm (83.3mm) intervals — cutting between marks damages the circuit. If you cut the flex yourself, we cannot guarantee the IP67 rating unless the cut end is resealed by ATOM LED.
• Profile recommended: our neon flex aluminium profiles improve heat dissipation, protect the silicone, and give a clean finish on straight runs.
• Standard: should be installed by a competent person in accordance with BS7671.

Spec note: on 48V this vertical bend neon flex runs 25m from a single feed and up to 50m with dual feed — close to twice the 12m single-feed reach of the 24V 10x10mm dual-bend version — while the cut interval doubles from 4.17cm to 8.33cm for fewer joins on long runs.

Choose a different colour temperature

• 2700K warm white vertical bend neon flex — deep amber-warm tone, ideal for hospitality, bedrooms, and cosy ambient runs.
• 3000K warm white vertical bend neon flex — soft warm white, ideal for living spaces, retail, and architectural detail.
• 4000K natural white vertical bend neon flex — neutral balanced white, ideal for kitchens, workshops, and retail feature runs.

Need a different bend?

• 10x10mm Dual Bend 24V 6000K neon flex: bends in both planes — horizontal and vertical — for wraparound and complex layouts. Up to 12m single feed on 24V.

Every order is custom cut to your exact length — no off-the-shelf sizes, no waste. Tell us the length you need and we will cut, seal, and ship it ready for installation.

Specifications

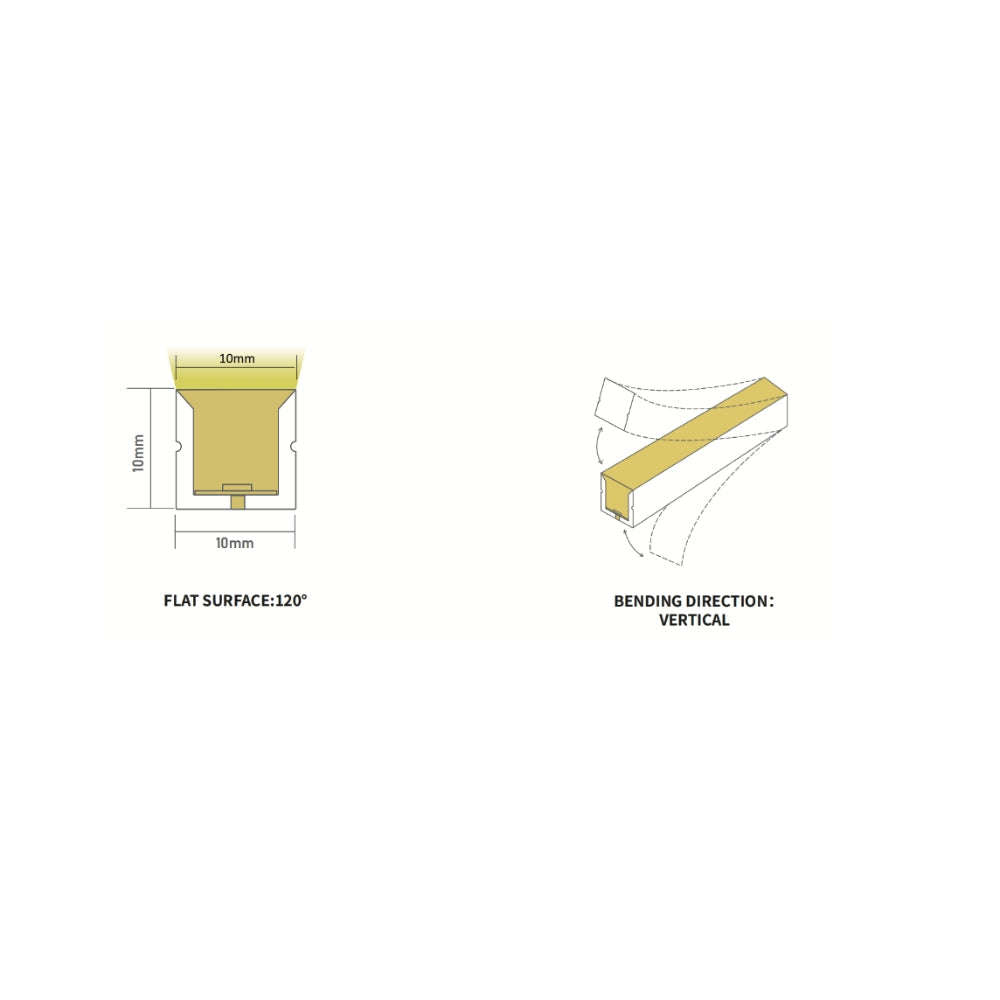

• Bend type: vertical bend (top bend) — vertical plane only
• Voltage: 48V DC
• Max power: 11W per metre
• LED density: 144 LEDs per metre
• Lumens: up to 550 lm per metre
• CRI: >85 (colour-accurate rendering)
• Beam angle: 120°
• Dimensions: 10mm × 10mm
• Cut points: every 8.33cm (83.3mm) — do not cut between marked points
• Minimum bend radius: 3cm (30mm), vertical plane
• Continuous run: up to 25m single feed (one side power); up to 50m dual feed (power both ends)
• Colour temperature: 6000K cool white
• IP rating: IP67 — rated for indoor and outdoor use
• Material: anti-yellowing UV-stable silicone
• Certification: CE, RoHS, UKCA, ETL
• Warranty: 4 years

Frequently asked questions

Is top bend the same as vertical bend neon flex?

Yes. Top bend and vertical bend describe the same flex — it bends on its short axis, up and down, not side to side.

How far will 48V vertical bend neon flex run?

Up to 25m continuous from a single feed (one side power) on 48V, or up to 50m continuous with power injected at both ends (dual feed). Split the run only beyond 50m.

Can vertical bend neon flex bend left and right?

No. Top bend flex only bends vertically. For horizontal curves choose side bend; for both planes choose dual bend.

What is the cut interval on 10x10mm top bend neon flex?

Every 8.33cm (83.3mm). Cut only on the marked points — cutting between them breaks the circuit.

4-year warranty. Free UK delivery on all Mainland UK orders (2-3 working days). Designed in the UK.

The lights are custom cut as per your specific requirements.
