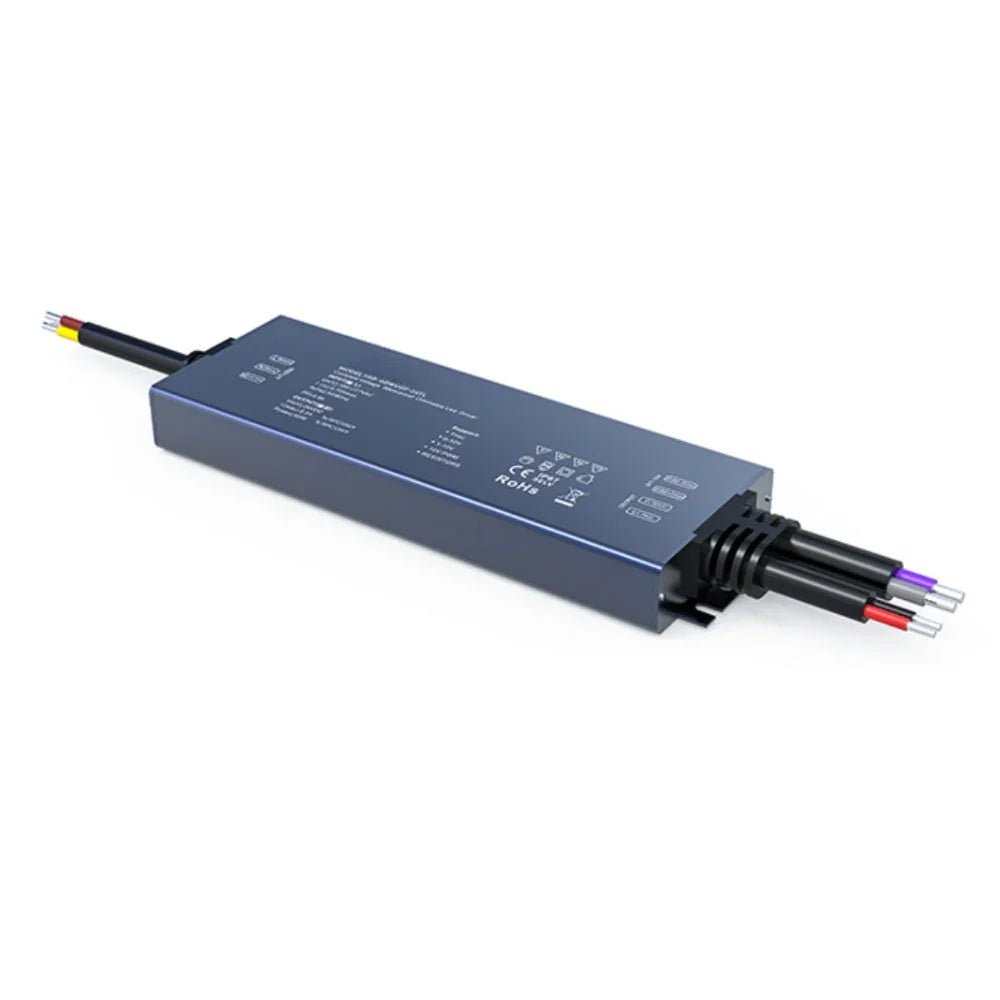

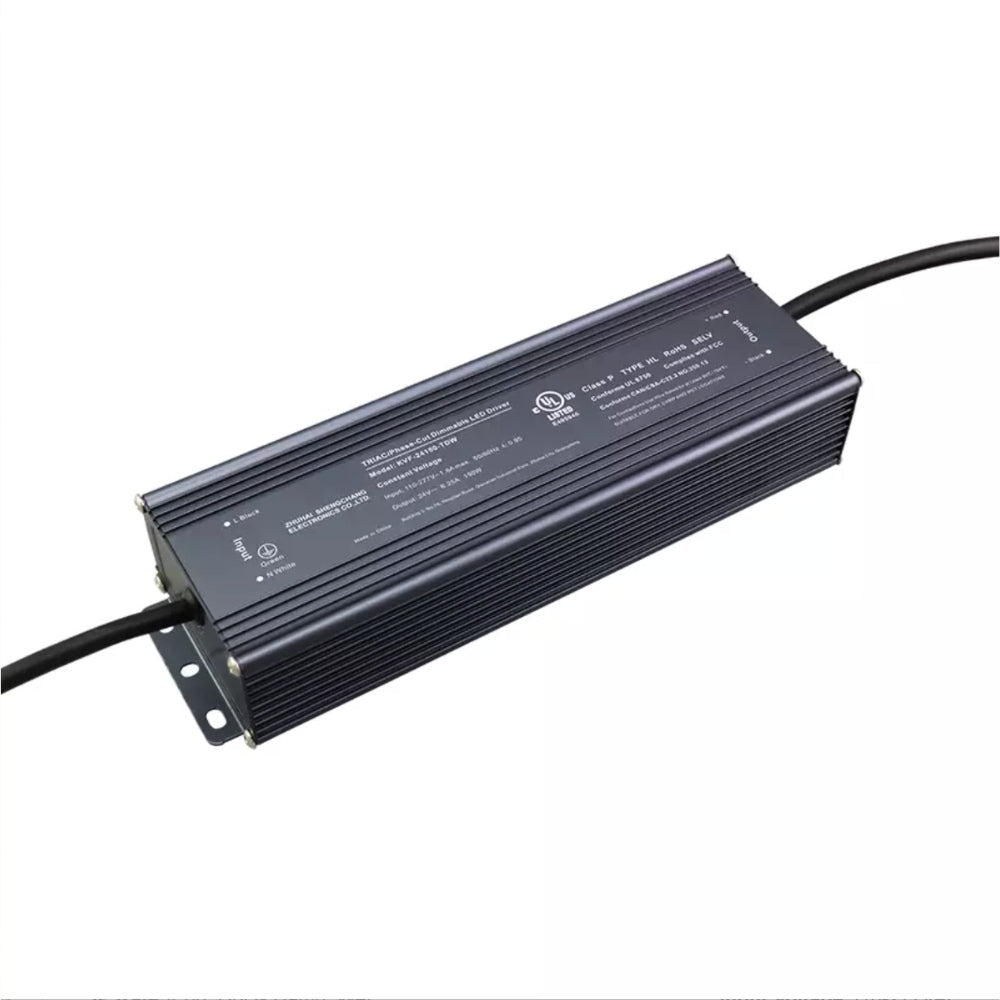

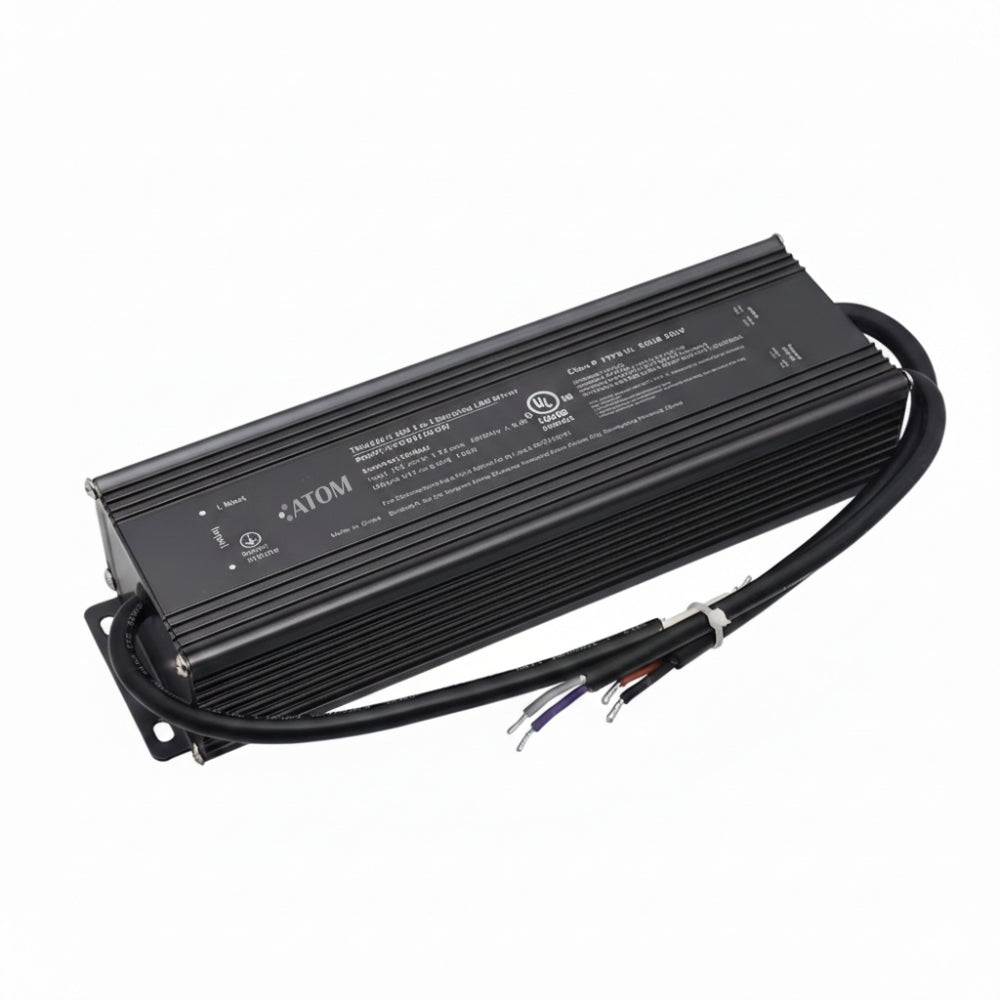

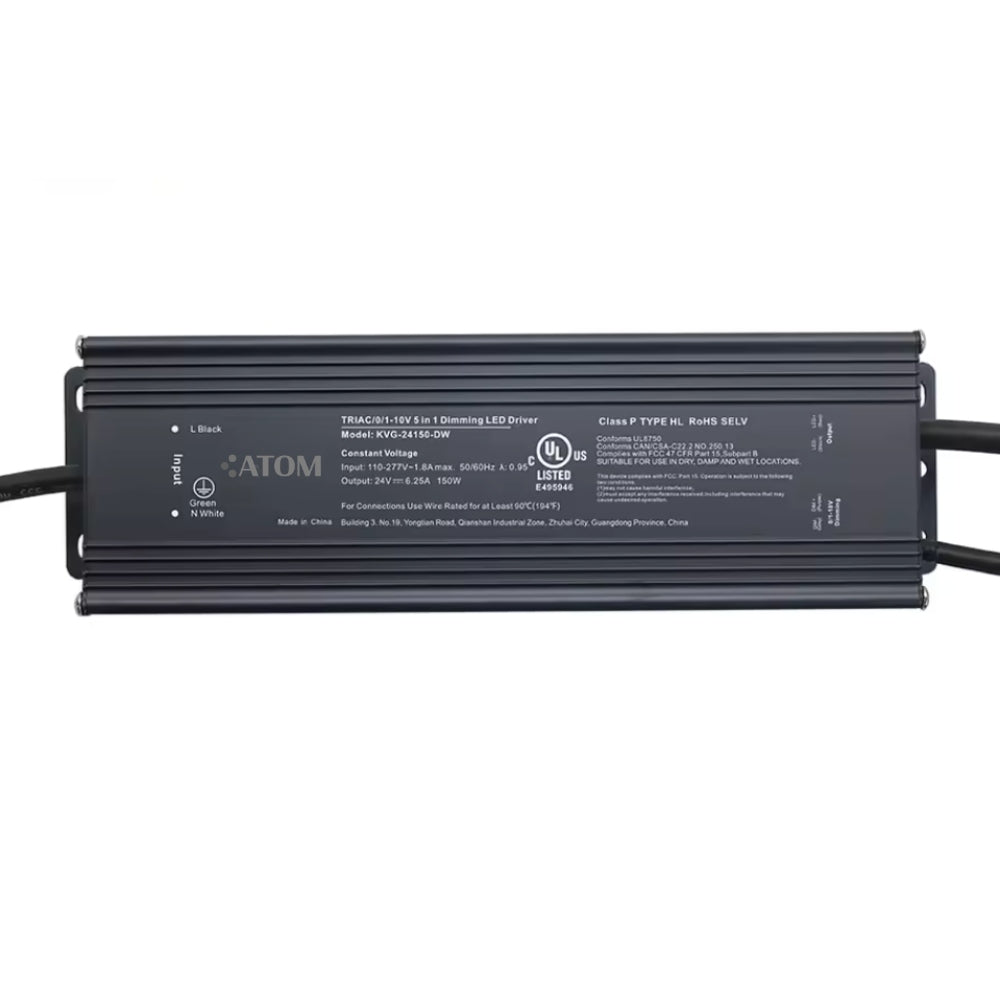

24V IP67 Triac Dimmable Power Supply Driver Constant Voltage 150W

The Premium Hybrid Series 24V 150W dimmable LED driver offers outstanding versatility with its advanced 5-in-1 dimming options, supporting 0-10V, 1-10V, 10V PWM, and resistance dimming. Designed for superior visual comfort, it features smooth soft-on and fade-in functions, operating completely flicker-free in line with IEEE1789 standards. With a high efficiency rating of 90%, built-in protection mechanisms, and a long lifespan of up to 50,000 hours, it ensures both performance and durability. Its IP67 waterproof rating makes it ideal for various lighting applications. Fully compatible with most major lighting brands, it also supports both leading-edge and trailing-edge dimmers for maximum flexibility.

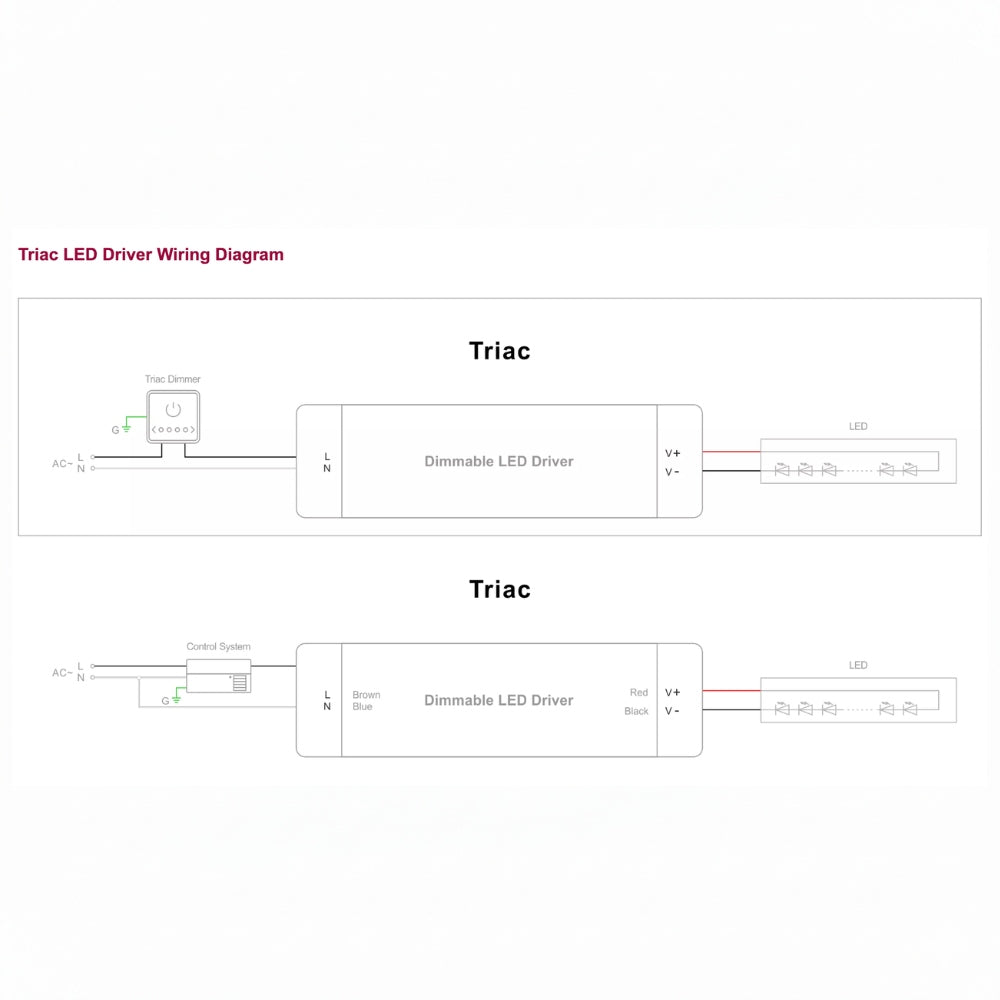

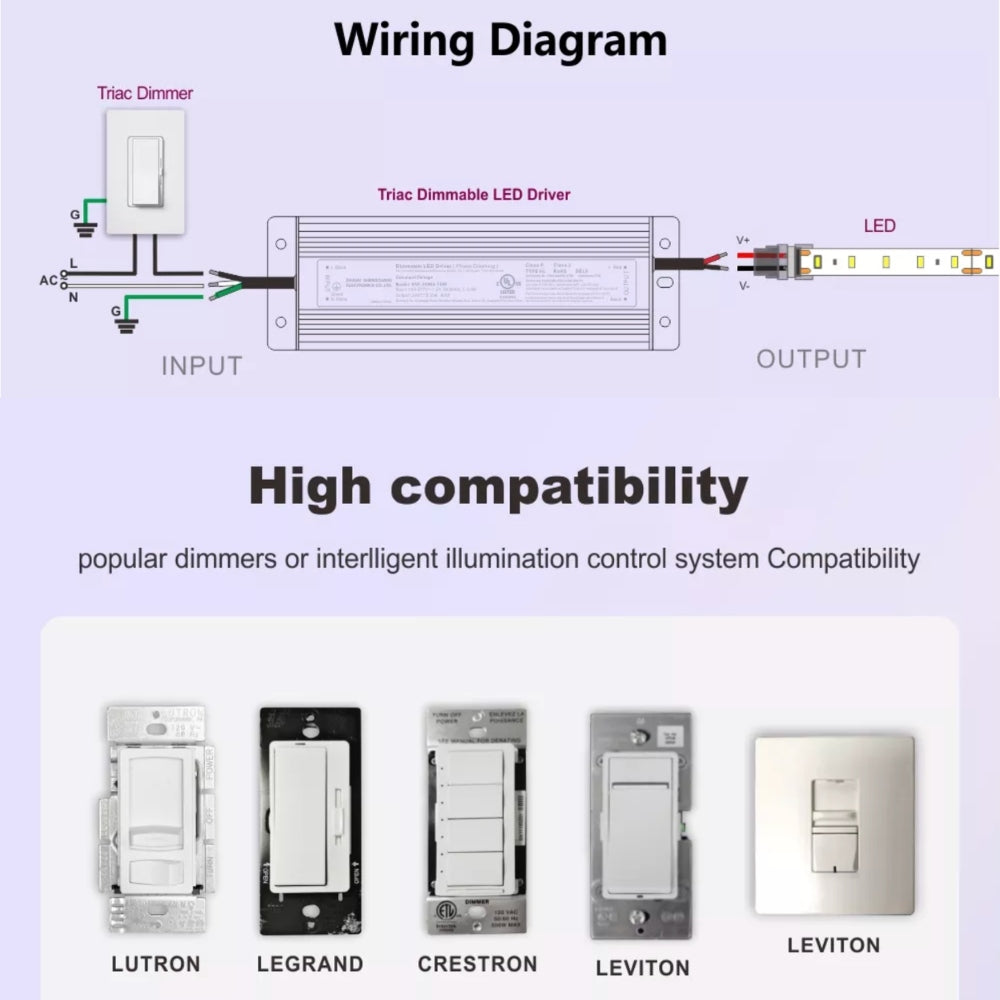

• Triac dimmer /0-10V dimmer /1-10V dimmer /10V

• Input voltage：100-277V

• Output voltage：24V

• 1P67 design for indoor or outdoor installation
• It can be used in dry, wet and rainy environments
• Cooling by free air, high reliability
• Up to 50000-hour lifetime
• Suitable for internal lights application for I /I/I.
• Widely used in LED lighting and IT equipment
• Do not use it to full capacity, leave about 10% to 15%

Technical information:

Input Voltage: AC 100-277V
Output Voltage: DC 24V
Output Voltage Range: 24VDC±0.6VDC
Output Current: Max 6.2A
Watts: 150W
Ripple & Noise: ≤400mV
Dimming Range: 0~100%, dimming depth: Max. 1%
Leakage Current: Max.0.5mA
Constant Voltage
PWM Frequency: 3500Hz
Power Factor: PF>0.95/230Vac, at Full Load
THD: ≤10% at 230Vac, at full load
Efficiency: 94.5%
IP rating: IP67 Waterproof
Frequency: 50/60Hz
Warranty: 5 years
Weight: 460 grams

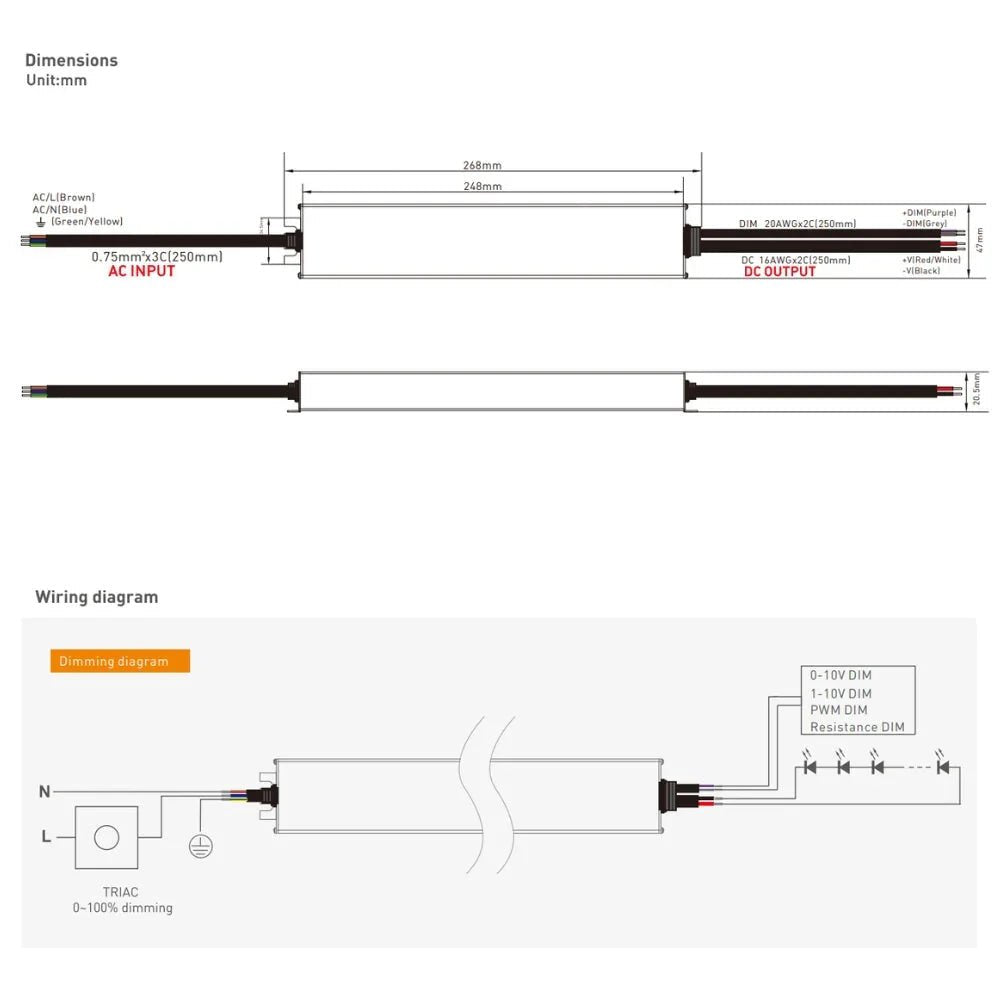

Dimensions: 268x47x20.5mm(LxWxH)

Protection:

Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.

Shut down the output when the current load ≥110%, auto-recover.

Protection type:

1. When the first-level short-circuit protection is triggered, the fault can be automatically recovered;

2. When the second-level short-circuit protection is triggered, the power needs to be turned on again after the fault is eliminated
